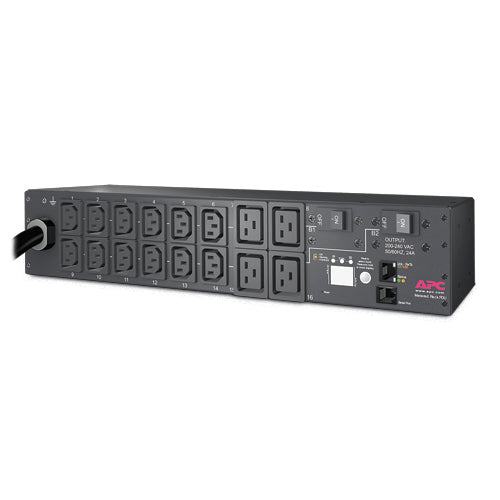

APC AP7811B power distribution unit (PDU) 16 AC outlet(s) 2U Black
1,258.67 CAD
Skip to product information
In stock
APC AP7811B power distribution unit (PDU) 16 AC outlet(s) 2U Black
Part number
AP7811B
1,258.67 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
5.42 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Availability
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Marketing Features
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Marketing Features
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
| Design | |
|---|---|
| PDU types | Metered |
| On/off switch | Yes |
| Product colour | Black |
| Certification | cUL, CSA, FCC 15 A, ICES-003, PSE, UL 60950, UL, REACH |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | NEMA L6-30P |
| Features | |
| LED indicators | Yes |
| Cable length | 144.1" (3.66 m) |
| Certification | cUL, CSA, FCC 15 A, ICES-003, PSE, UL 60950, UL, REACH |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 144.1" (3.66 m) |
| Power | |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Maximum total current draw per phase | 24 A |
| Power protection features | Overload |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 4.41 x 3.46" (444 x 112 x 88 mm) |
| Weight | 7.41 lbs (3.36 kg) |
| Width | 17.5" (444 mm) |
| Depth | 4.41" (112 mm) |
| Height | 3.46" (88 mm) |
| Package width | 20" (508 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 5.51" (140 mm) |
| Package weight | 11.9 lbs (5.42 kg) |
| Package dimensions (WxDxH) | 20 x 14.5 x 5.51" (508 x 368 x 140 mm) |
| Packaging data | |
| Package width | 20" (508 mm) |
| Package depth | 14.5" (368 mm) |
| Package height | 5.51" (140 mm) |
| Package weight | 11.9 lbs (5.42 kg) |
| Package dimensions (WxDxH) | 20 x 14.5 x 5.51" (508 x 368 x 140 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 7045.77 |
| Compliance certificates | RoHS |
