In stock
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements

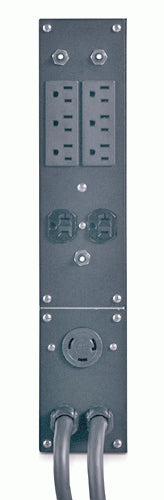

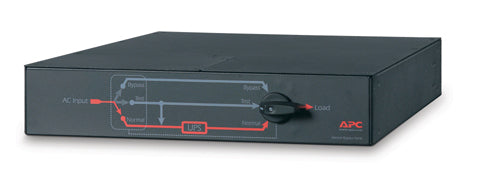

APC Service Bypass Panel- 100-120V power distribution unit (PDU) Black
Part number
SBP3000RM2U
$795.96 CAD
Service Bypass Panel- 100-120V; 30A; BBM; L5-30P input; (2) 5-20R (6) 5-15R output
Description
19 inch Rack-MountableSupplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Meets UL Requirements
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ports & interfaces | |
| Input connection type | NEMA L5-30P |
| Output connections | 6x NEMA 5-15R 2x NEMA 5-20R |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ergonomics | |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Load capacity | 3000 VA |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 30 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17 x 25.5 x 3.5" (432 x 648 x 89 mm) |
| Weight | 30 lbs (13.6 kg) |
| Width | 17" (432 mm) |
| Depth | 25.5" (648 mm) |
| Height | 3.5" (89 mm) |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 7.99" (203 mm) |
| Package weight | 54.2 lbs (24.6 kg) |
| Package dimensions (WxDxH) | 24 x 39 x 7.99" (610 x 991 x 203 mm) |
| Packaging data | |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 7.99" (203 mm) |
| Package weight | 54.2 lbs (24.6 kg) |
| Package dimensions (WxDxH) | 24 x 39 x 7.99" (610 x 991 x 203 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
