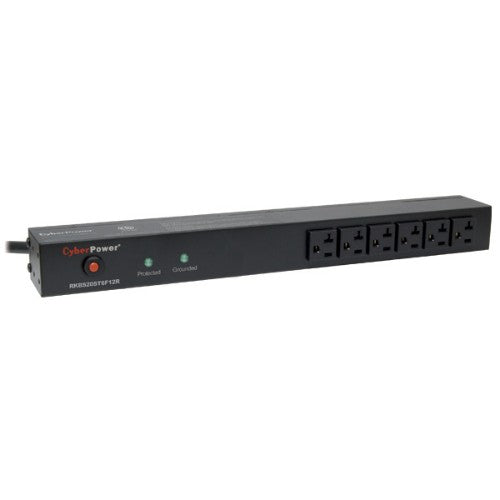

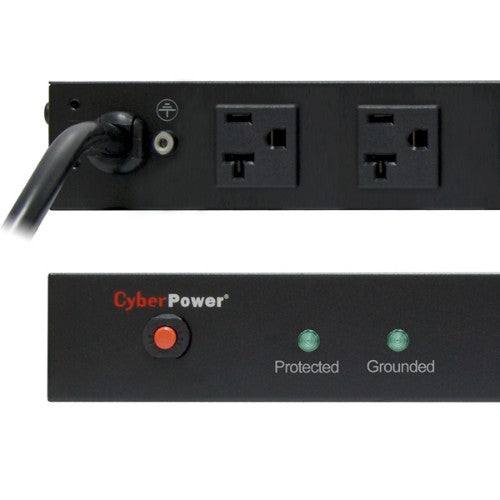

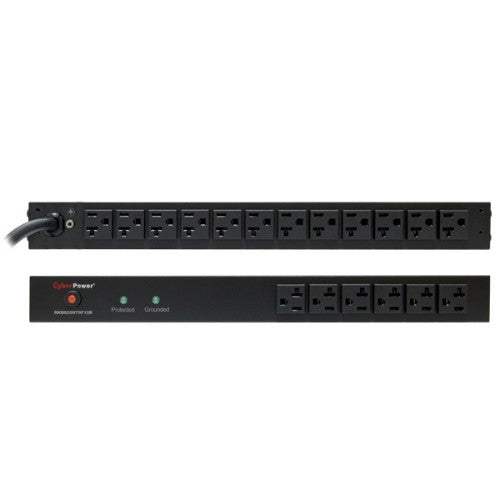

CyberPower RKBS20ST6F12R surge protector Black 18 AC outlet(s) 120 V 179.9" (4.57 m)
Part number
RKBS20ST6F12R
$181.03 CAD
Rackbar Surge Protection, 1U, 120V AC - 50/60Hz, 18 NEMA 5-20R, Black
Description
The CyberPower 18-outlet (6 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS20ST6F12R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 18 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.Specifications
| Power | |
|---|---|
| Surge energy rating | 1800 J |
| AC outlets quantity | 18 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Ports & interfaces | |
| Cable length | 179.9" (4.57 m) |
| Features | |
| Remote control included | No |
| Rack mounting | Yes |
| EMI/RFI noise filtering | Yes |
| EMI/RFI noise filtering | 50 dB |
| On/off switch | Yes |
| Product colour | Black |
| Technical details | |
| Weight (imperial) | 4.92 lbs |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable length | 179.9" (4.57 m) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Certificates | |
| Certification | UL1363 UL1449, CSA C22.2 |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Width (imperial) | 1.75" |
| Input connections | NEMA L5-20P |
| Height (imperial) | 17.5" |
| Depth (imperial) | 2.25" |
