5 left

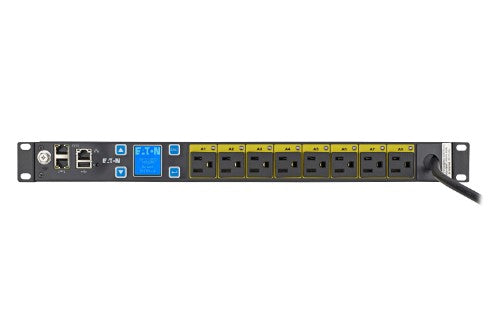

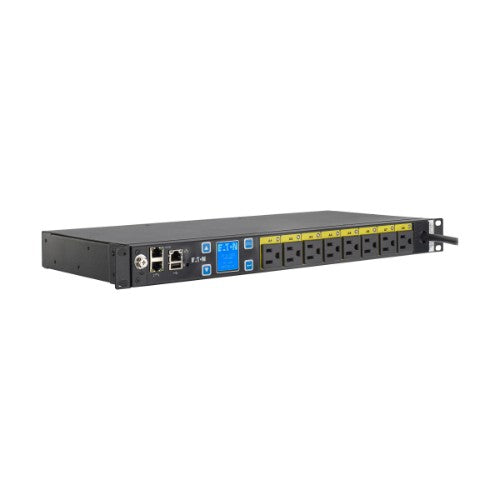

Eaton EMAT08-10 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Part number
EMAT08-10
$1,073.57 CAD
PDU, 1U, 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (8) 5-15R
Description
EATON EPDU MA 1U IN: 5-15P 12A 1P OUT: 8X5-15RSpecifications
| Design | |
|---|---|
| PDU types | Managed |
| Mounting | Horizontal |
| Type | Single-phase |
| Display | LCD |
| Product colour | Black |
| Certification | UL Listed |
| Rack capacity | 1U |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Features | |
| Cable length | 118.1" (3 m) |
| Certification | UL Listed |
| Ergonomics | |
| Display | LCD |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 12 A |
| AC input frequency | 50 - 60 Hz |
| Number of phases | 1 |
| Weight & dimensions | |
| Weight | 6.9 lbs (3.13 kg) |
| Width | 1.69" (43 mm) |
| Depth | 19" (482.6 mm) |
| Height | 7.99" (203 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Warranty period | 3 year(s) |
