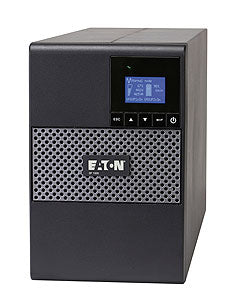

Eaton 5P Tower uninterruptible power supply (UPS) 1.44 kVA 1100 W 8 AC outlet(s)
Part number
5P1500
$867.84 CAD
1440VA, 1100W, 120V, 1 x 5-15P In, 8 x 5-15R Out, RS-232, USB
Description
The Eaton 5P Tower UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.Specifications
| Power | |
|---|---|
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Noise level | 45 dB |
| LED indicators | Yes |
| Features | |
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 45 dB |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 14 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black, Silver |
| Certification | UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC |
| Cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 17.5" (445 mm) |
| Height | 9.06" (230 mm) |
| Weight | 35.7 lbs (16.2 kg) |
| Certificates | |
| Certification | UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC |
