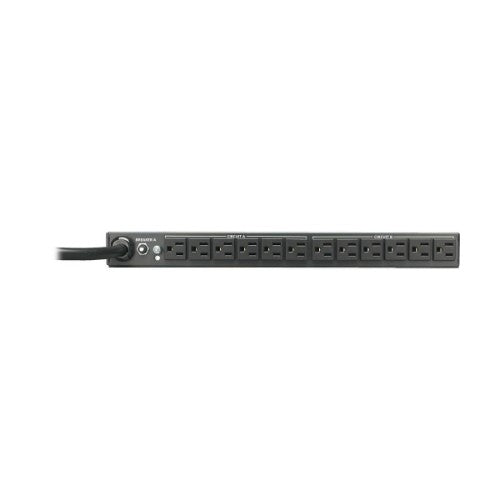

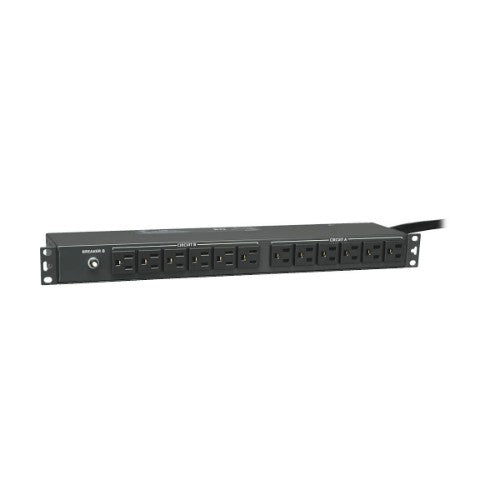

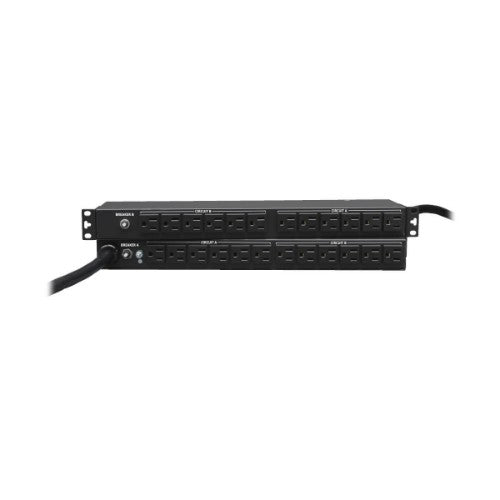

Tripp Lite PDU2430 power distribution unit (PDU) 24 AC outlet(s) 1U Black
381.26 CAD
Skip to product information
Out of stock
Tripp Lite PDU2430 power distribution unit (PDU) 24 AC outlet(s) 1U Black
Part number
PDU2430
381.26 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.591 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
- Attached NEMA L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 24 NEMA 5-15R outlets (12 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
- 30A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 24A continuous)
- Attached NEMA L5-30P 30A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 24 NEMA 5-15R outlets (12 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL60950-1/CAN/CSA C22.2 No. 60950-1-03 |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1/CAN/CSA C22.2 No. 60950-1-03 |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 30 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 4.37 x 1.73" (445 x 111 x 44 mm) |
| Weight | 7.41 lbs (3.36 kg) |
| Width | 17.5" (445 mm) |
| Depth | 4.37" (111 mm) |
| Height | 1.73" (44 mm) |
| Package width | 10.9" (276.9 mm) |
| Package depth | 20.3" (515.6 mm) |
| Package height | 3" (76.2 mm) |
| Package weight | 7.5 lbs (3.4 kg) |
| Packaging data | |
| Package width | 10.9" (276.9 mm) |
| Package depth | 20.3" (515.6 mm) |
| Package height | 3" (76.2 mm) |
| Package weight | 7.5 lbs (3.4 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332117288 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 19.8" (502.9 mm) |
| Master (outer) case length | 20.7" (525.8 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 49.4 lbs (22.4 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
