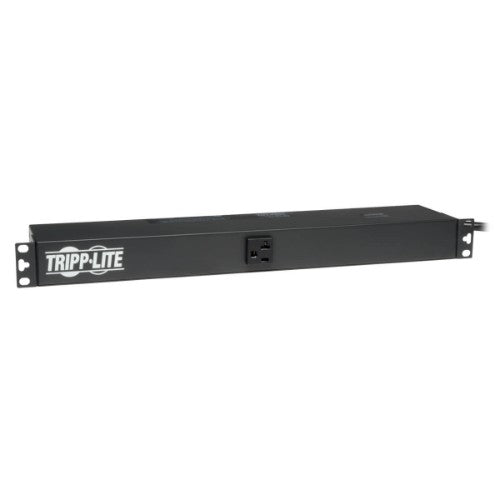

Tripp Lite PDU1220T power distribution unit (PDU) 13 AC outlet(s) 1U Black
253.06 CAD
Skip to product information
Out of stock
Tripp Lite PDU1220T power distribution unit (PDU) 13 AC outlet(s) 1U Black
Part number
PDU1220T
253.06 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.654 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design.
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

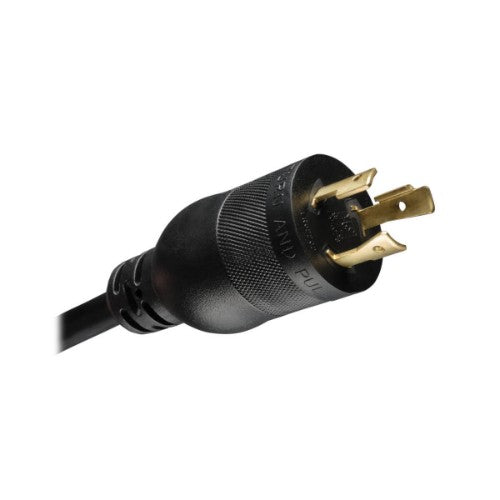

- NEMA L5-20P 20A 120v input plug with 15 ft. / 4.5m line cord

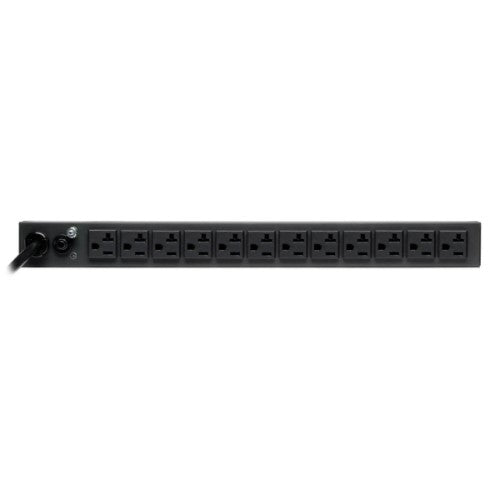

- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space
- NEMA L5-20P 20A 120v input plug with 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL60950-1/CSA-C22.2 |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA L5-20P |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1/CSA-C22.2 |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 20 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 4.49 x 1.77" (445 x 114 x 45 mm) |
| Weight | 5.2 lbs (2.36 kg) |
| Weight (imperial) | 5.2 lbs |
| Width | 17.5" (445 mm) |
| Depth | 4.49" (114 mm) |
| Height | 1.77" (45 mm) |
| Package width | 2.25" (57.2 mm) |
| Package depth | 20.4" (518.2 mm) |
| Package height | 9.3" (236.2 mm) |
| Package weight | 5.71 lbs (2.59 kg) |
| Packaging data | |
| Package width | 2.25" (57.2 mm) |
| Package depth | 20.4" (518.2 mm) |
| Package height | 9.3" (236.2 mm) |
| Package weight | 5.71 lbs (2.59 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332119145 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 13.9" (353.1 mm) |
| Master (outer) case length | 20.6" (523.2 mm) |
| Master (outer) case height | 10" (254 mm) |
| Master (outer) case gross weight | 37 lbs (16.8 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
