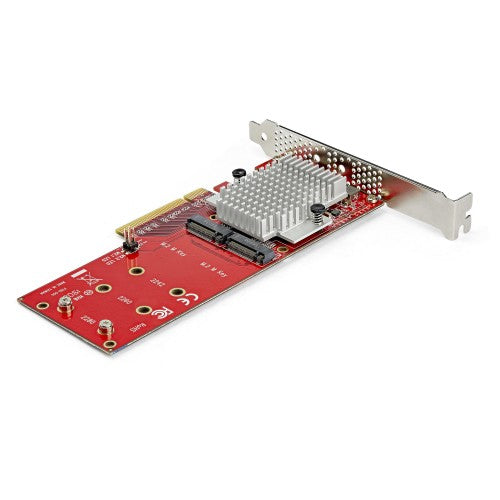

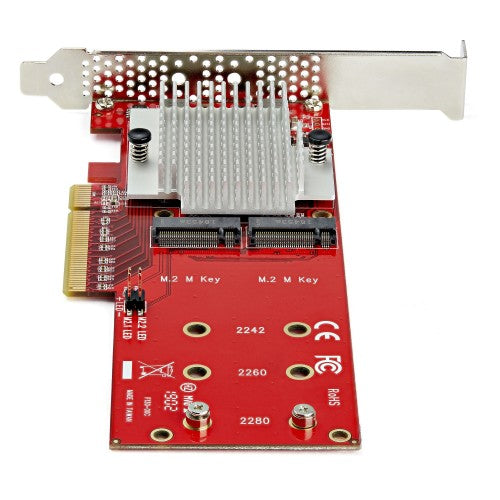

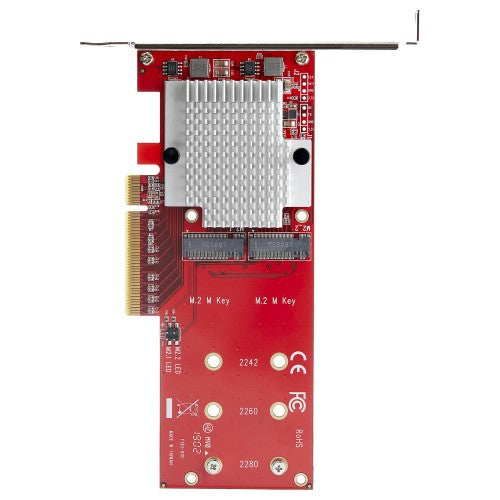

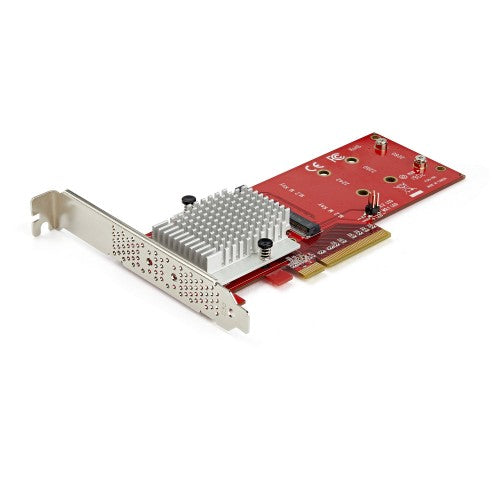

StarTech.com PEX8M2E2 interface cards/adapter Internal M.2
233.12 CAD
Skip to product information
Out of stock
StarTech.com PEX8M2E2 interface cards/adapter Internal M.2
Part number
PEX8M2E2
233.12 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.204 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install

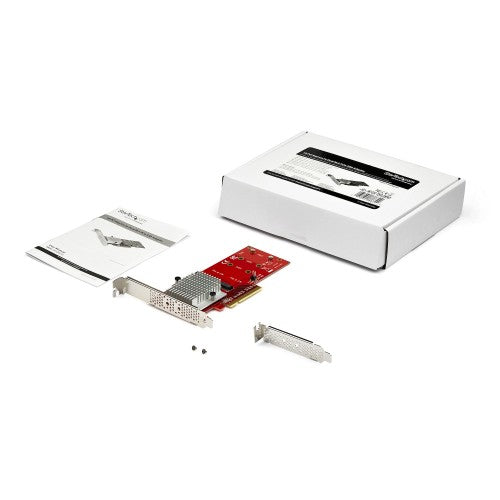

The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.

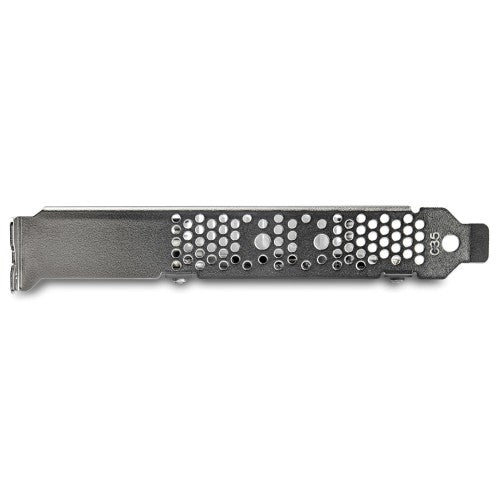

Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install
The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | M.2 |
| Number of M.2 (M) slots | 2 |
| SATA connector insertion cycles | 60 |
| Expansion card standard | PCI 3.0 |
| Performance | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM2824 |
| Hot-swap | Yes |
| Data transfer rate (max) | 8 Gbit/s |
| Product colour | Red |
| Supported storage drive heights | 22 mm |
| SATA connector insertion cycles | 60 |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Supported storage drive heights | 22 mm |
| Internal | Yes |
| Mean time between failures (MTBF) | 3336103 h |
| Hot-swap | Yes |
| Product colour | Red |
| Certification | CE, FCC, TAA, REACH |
| Features | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM2824 |
| Data transfer rate (max) | 8 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| System requirements | |
| Supported storage drive heights | 22 mm |
| Weight & dimensions | |
| Width | 0.63" (16 mm) |
| Depth | 6.26" (159 mm) |
| Height | 2.72" (69 mm) |
| Weight | 3.1 oz (88 g) |
| Package width | 6.18" (157 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 1.57" (40 mm) |
| Package weight | 5.54 oz (157 g) |
| Packaging data | |
| User guide | Yes |
| Mounting brackets included | Yes |
| Package width | 6.18" (157 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 1.57" (40 mm) |
| Package weight | 5.54 oz (157 g) |
| Quantity | 1 |
| Screws included | Yes |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 13.4" (340 mm) |
| Master (outer) case length | 18.1" (460 mm) |
| Master (outer) case height | 19.5" (495 mm) |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| User guide | Yes |
| Mounting brackets included | Yes |
| Quantity | 1 |
| Screws included | Yes |
| Other features | |
| Chipset | ASMedia - ASM2824 |
