- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels – provides up to 8 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert – selects the optimum EDID settings via RS-232
- Note:
- * The VS172 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
- ** HDCP is not supported.

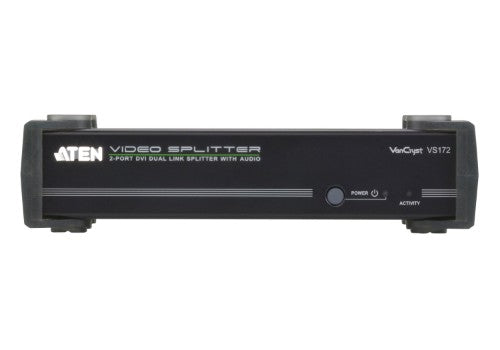

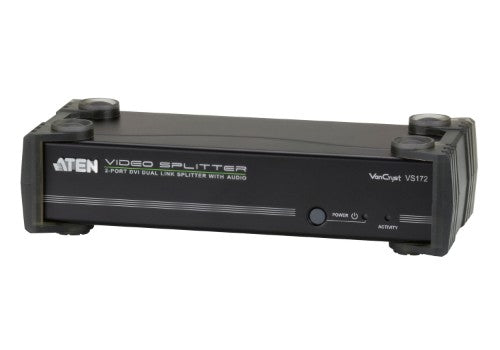

The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
| Ports & interfaces | |
|---|---|
| Video ports quantity | 3 |
| Video port type | DVI |
| Audio ports quantity | 3 |
| Video out | 3x DVI-D |
| Video in | DVI-D DL |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Maximum resolution | 2560 x 1600 pixels |
| Power LED | Yes |
| Maximum operating distance | 196.9" (5 m) |
| Housing material | Metal |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 3.1 W |
| AC input voltage | 5.3 V |
| Weight & dimensions | |
| Weight | 24 oz (680 g) |
| Dimensions (WxDxH) | 3.46 x 8.27 x 2.19" (88 x 210 x 55.5 mm) |
| Packaging content | |
| Packaging content | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Video | |
| Maximum resolution | 2560 x 1600 pixels |
| Colour | |
| Product colour | Black |
| Indication | |
| Power LED | Yes |
| Technical details | |
| Video out | 3x DVI-D |
| Video in | DVI-D DL |
| Maximum operating distance | 196.9" (5 m) |
| Housing material | Metal |
| Audio output | 3.5mm |
| Audio input | 3.5mm |
