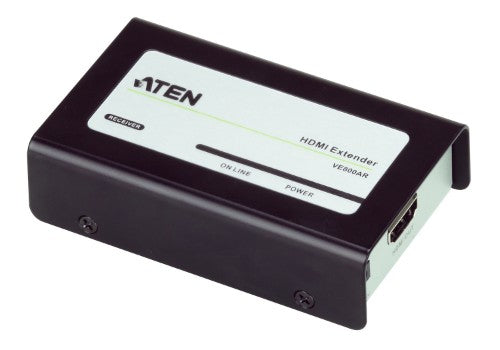

ATEN VE800AR AV extender AV receiver Black
65.76 CAD
Skip to product information
Out of stock
ATEN VE800AR AV extender AV receiver Black
Part number
VE800AR
65.76 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.308 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Extends an HDMI output via a single Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio

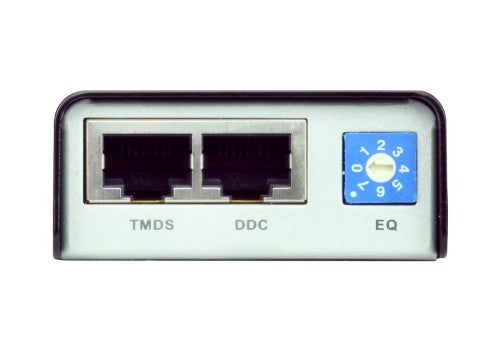

- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Impedance | 100 Ω |
| Maximum transfer distance | 2362.2" (60 m) |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Material | Metal |
| HDCP | Yes |
| Bandwidth | 225 MHz |
| Product colour | Black |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio output | 1 |
| Audio input | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power consumption (receiver) (max) | 0.75 W |
| Operating voltage | 5 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 2.17 x 3.54 x 0.906" (55 x 90 x 23 mm) |
| Receiver weight | 5.64 oz (160 g) |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
