StarTech.com PEX2PCIE4L interface cards/adapter
Part number
PEX2PCIE4L
648.56 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.64 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

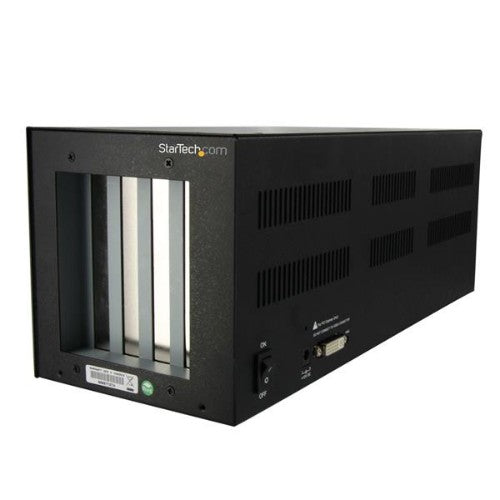

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

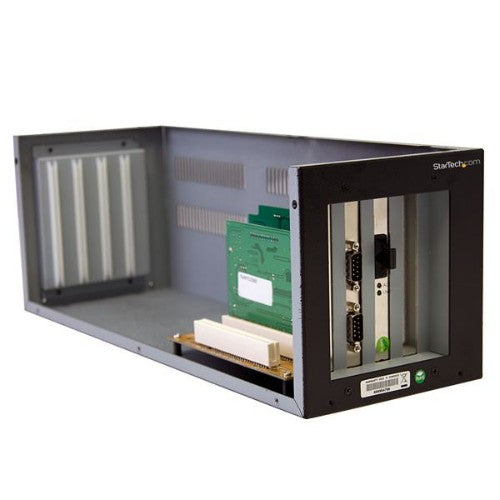

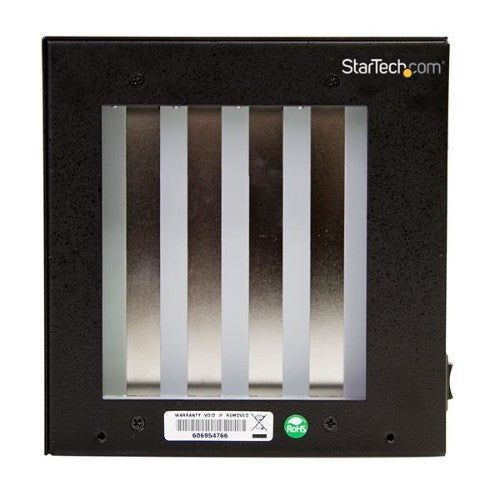

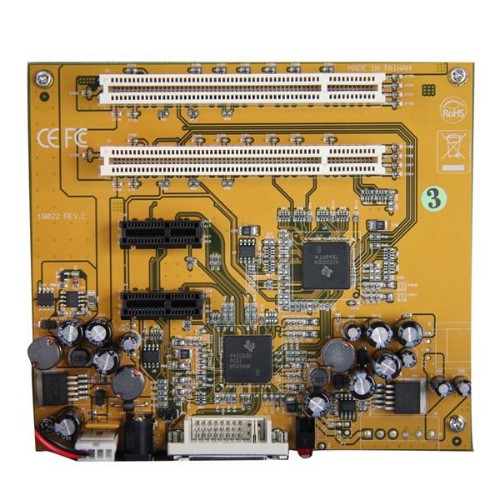

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
| Performance | |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Design | |
| Certification | ROHS, CE, FCC |
| Features | |
| Harmonized System (HS) code | 84719000 |
| Power | |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 5.39" (137 mm) |
| Depth | 15" (382 mm) |
| Height | 5.63" (143 mm) |
| Weight | 4.41 lbs (2 kg) |
| Package width | 8.19" (208 mm) |
| Package depth | 17.2" (436 mm) |
| Package height | 10" (254 mm) |
| Package weight | 4.63 lbs (2.1 kg) |
| Packaging data | |

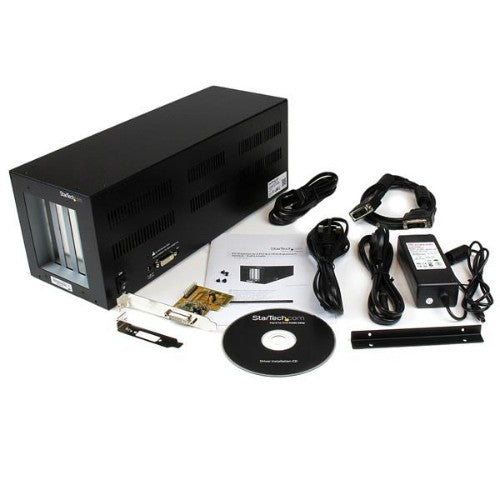

| Cables included | AC, DVI |
| Manual | Yes |
| Package width | 8.19" (208 mm) |
| Package depth | 17.2" (436 mm) |
| Package height | 10" (254 mm) |
| Package weight | 4.63 lbs (2.1 kg) |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Data transfer rate | 250 Mbit/s |
| Ports quantity | 4 |
| Cable length | 35.4" (0.9 m) |
| Packaging content | |
| Cables included | AC, DVI |
| Manual | Yes |
