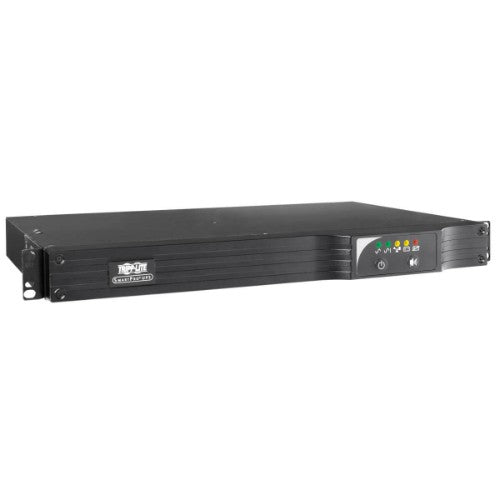

SMX500RT1U .5 kVA / 500VA / 300 watt line interactive UPS

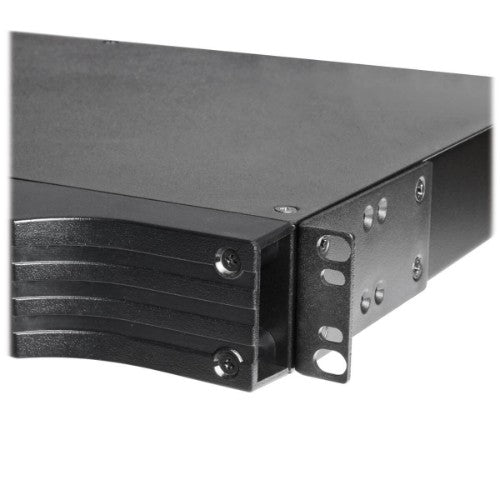

1U rack / tower compatible form factor

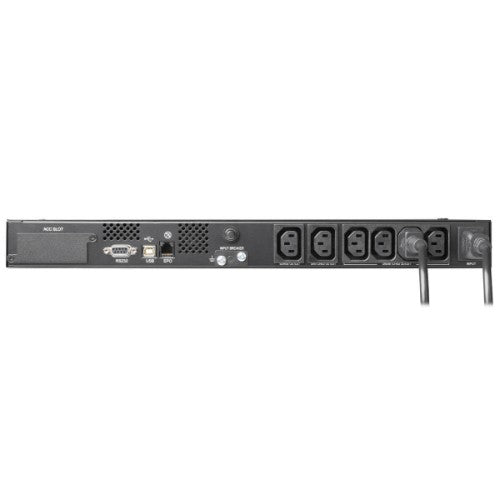

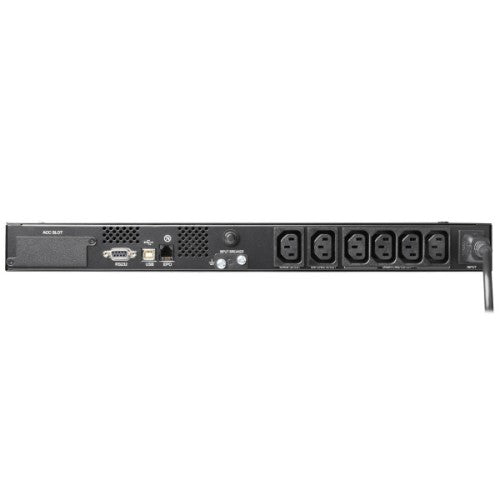

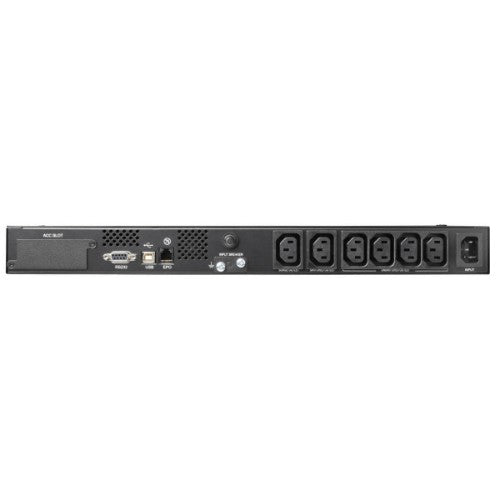

IEC C14 input; 6 IEC C13 output receptacles
Installed depth of only 11.8 in / 29.8 cm
Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
Intelligent battery management system extends battery life
Maintains regulated 230V nominal output during brownouts as low as 187V
Includes 6 UPS-supported outlets, with one single-outlet load bank for remote load shedding or rebooting of an individual device
USB & Serial ports enable data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
Compatible with UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
Supports WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW)
Emergency Power Off (EPO) interface with cable

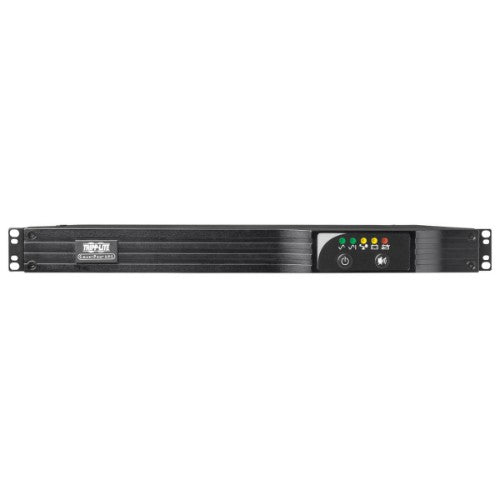

Multi-function audible alarms and set of 5 front panel LEDs
C14 inlet accepts user-supplied AC power cord with country specific plug
Network-grade AC surge suppression
Field-replaceable, hot-swappable internal UPS batteries
Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment

Power
Output power capacity	0.5 kVA
Output power	300 W
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Efficiency	95%
Emergency Power Off (EPO)	Yes
Performance
UPS topology	Line-Interactive
Response time	4 ms
Surge protection	Yes
Waveform	Sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	0.5 kVA
Country of origin	China
Response time	4 ms
Output power	300 W
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	480 J
Efficiency	95%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Audible alarm(s)	Yes
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Battery recharge time	4 h
Typical backup time at half load	14.6 min
Typical backup time at full load	3.2 min
Hot-swap battery	Yes
Design
Form factor	Rackmount
Country of origin	China
Product colour	Black
Certification	CE, GOST, SASO, IRAM
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Compliance certificates	RoHS
Certificates
Certification	CE, GOST, SASO, IRAM
Compliance certificates	RoHS
Weight & dimensions
Width	17.3" (439.9 mm)
Depth	11.3" (286 mm)
Height	1.73" (43.9 mm)
Weight	16.3 lbs (7.4 kg)
Package width	15.8" (401.3 mm)
Package depth	21" (533.4 mm)
Package height	4.2" (106.7 mm)
Package weight	17.7 lbs (8.03 kg)
Packaging data
Package width	15.8" (401.3 mm)
Package depth	21" (533.4 mm)
Package height	4.2" (106.7 mm)
Package weight	17.7 lbs (8.03 kg)
Logistics data
Country of origin	China
Products per master (outer) case	2 pc(s)
Master (outer) case width	16.1" (408.9 mm)
Master (outer) case length	21.7" (551.2 mm)
Master (outer) case height	10" (254 mm)
Master (outer) case gross weight	38.6 lbs (17.5 kg)
Master (outer) case GTIN (EAN/UPC)	10037332119251
