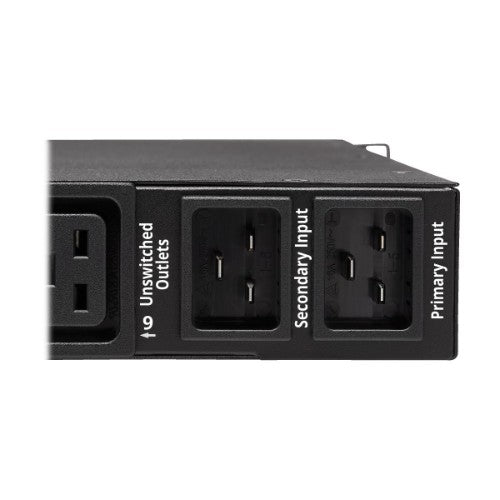

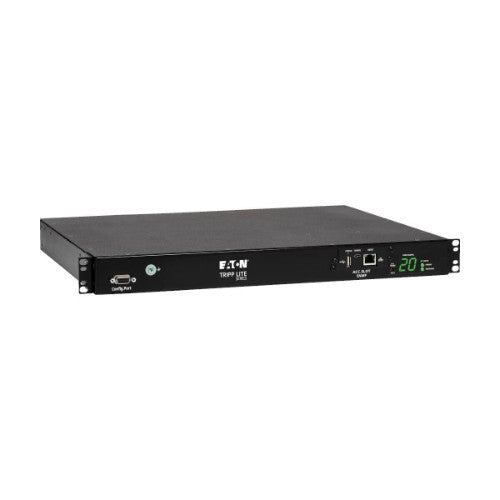

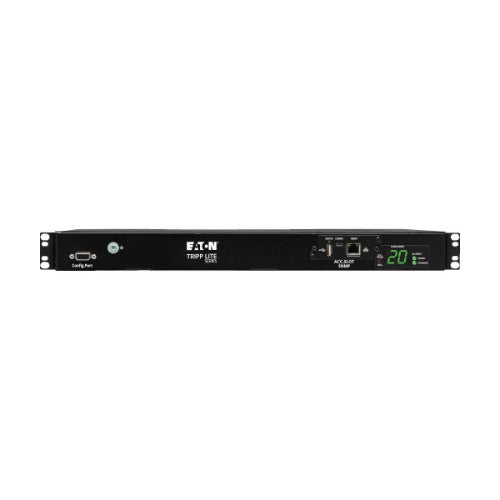

This Switched Automatic Transfer Switch / ATS PDU provides a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. SmartOnline® series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Design
PDU types	Switched
Mounting	Horizontal
Product colour	Black
Certification	UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico)
Rack capacity	1U
Housing material	Metal
Ports & interfaces
Power plug	C20 coupler

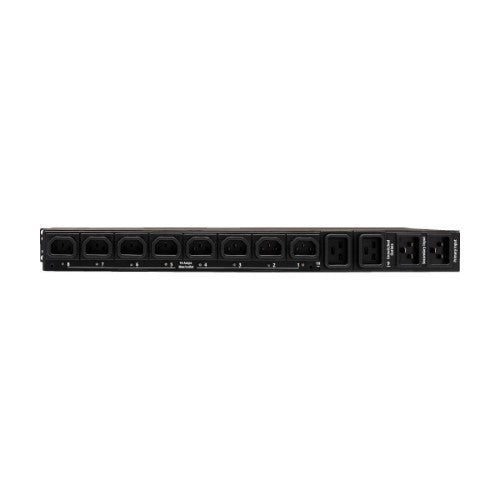

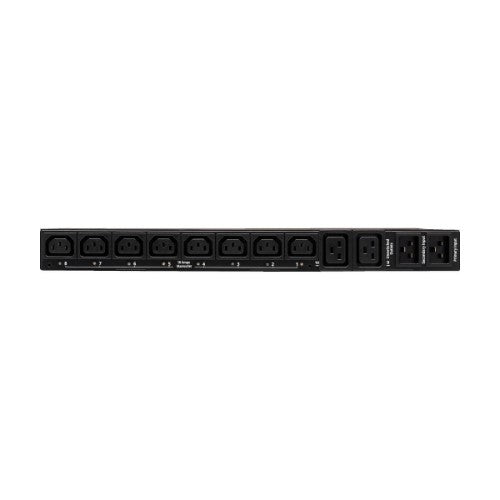

AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features

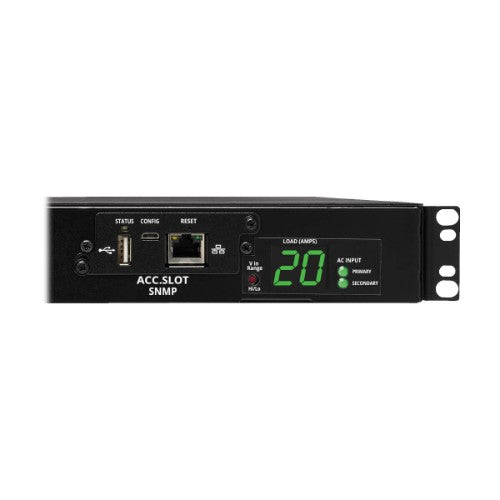

LED indicators	Yes
Cable length	141.7" (3.6 m)
Certification	UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico)
Ergonomics
LED indicators	Yes
Cable length	141.7" (3.6 m)
Power
Nominal input voltage	200-240 V
Maximum current	20 A
Nominal output voltage	200-240 V
AC input frequency	50 - 60 Hz
Certificates
Certification	UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico)
Compliance certificates	RoHS
Operational conditions
Storage temperature (T-T)	-15 - 50 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight	10.3 lbs (4.69 kg)
Width	17.3" (439 mm)
Depth	14.8" (376 mm)
Height	1.73" (44 mm)
Package width	20.8" (528.3 mm)
Package depth	23.4" (594.4 mm)
Package height	5.4" (137.2 mm)
Package weight	17 lbs (7.71 kg)
Packaging data
Package width	20.8" (528.3 mm)
Package depth	23.4" (594.4 mm)
Package height	5.4" (137.2 mm)
Package weight	17 lbs (7.71 kg)
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
