Tripp Lite PDU3XMV6G20 power distribution unit (PDU) 45 AC outlet(s) 0U Black
961.62 CAD
Skip to product information
Out of stock
Tripp Lite PDU3XMV6G20 power distribution unit (PDU) 45 AC outlet(s) 0U Black
Part number
PDU3XMV6G20
961.62 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
6.85 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

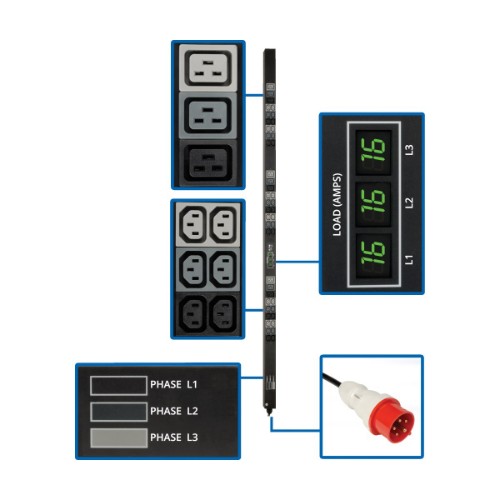

- Local metered 11.5kW 3 Phase 360-415V input / 208-240V output PDU

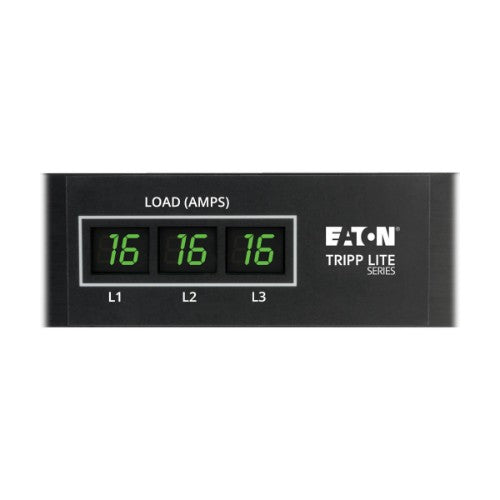

- Set of 3 digital meters reports output load level per phase in amps

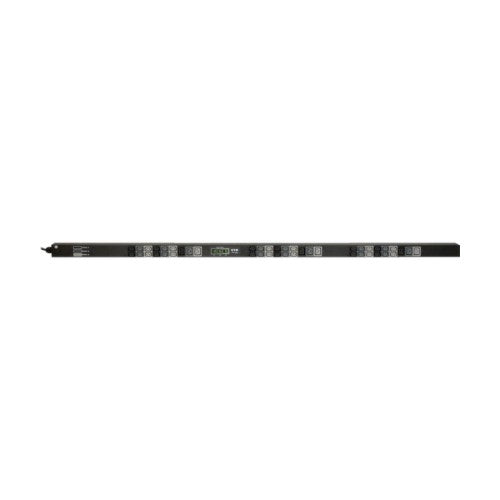

- 70in / 1778mm 0U vertical format, toolless button-mount installation

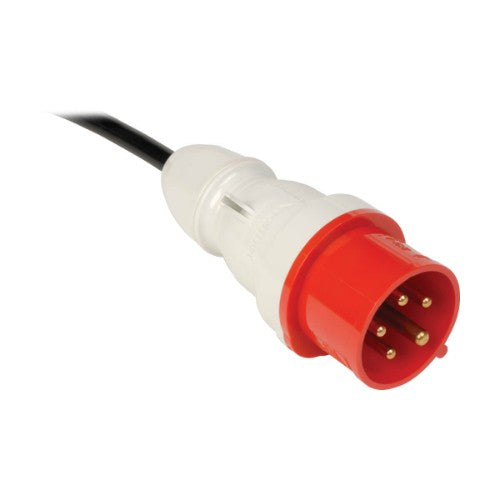

- IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord

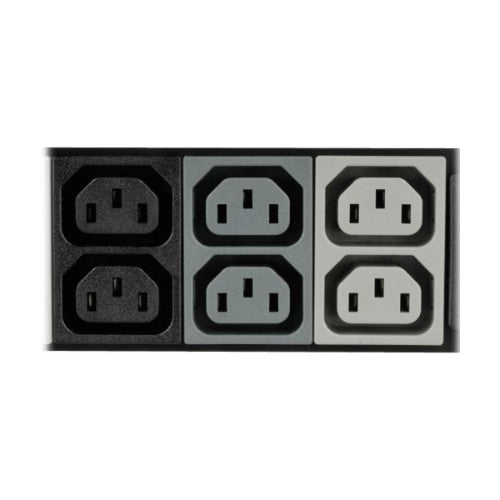

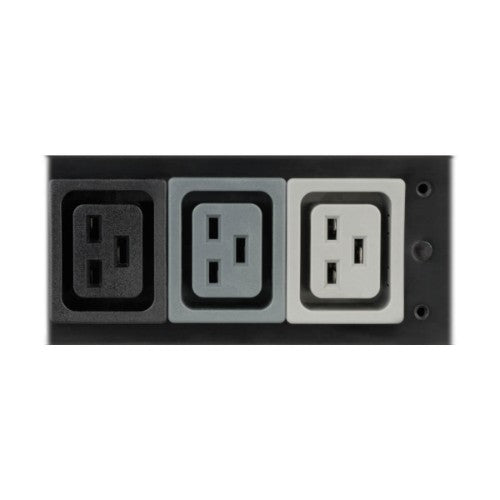

- 36 C13 and 9 C19 single phase outlets; Included cord retention brackets
11.5kW Local Metered Power Distribution Unit / rack PDU (rPDU)
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported

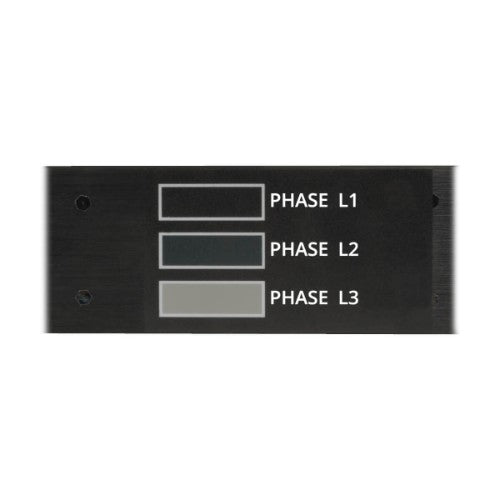

Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered

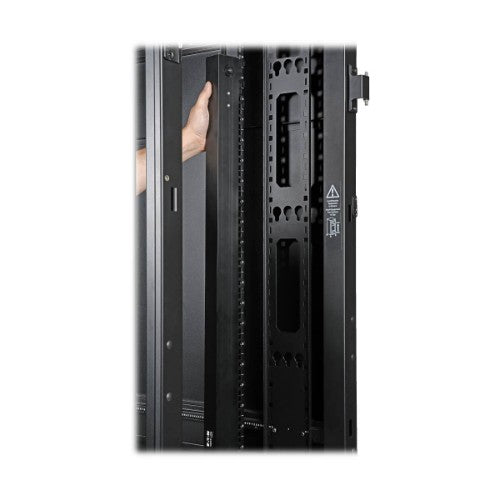

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported
Outlets are arranged in 3 local metered 15 outlet load banks
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL, CSA, NOM, CE |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| AC outlets quantity | 45 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC-309 16A RED (3P+N+E) |
| Features | |
| Cable length | 70.9" (1.8 m) |
| Certification | UL, CSA, NOM, CE |
| Ergonomics | |
| Cable length | 70.9" (1.8 m) |
| Power | |
| Nominal input voltage | 380-415 V |
| Maximum current | 16 A |
| Nominal output voltage | 220-240 V |
| Load capacity | 11500 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL, CSA, NOM, CE |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 8.99 lbs (4.08 kg) |
| Width | 2.2" (56 mm) |
| Depth | 1.93" (49 mm) |
| Height | 70" (1778 mm) |
| Package width | 4.29" (109 mm) |
| Package depth | 75.8" (1925 mm) |
| Package height | 6.1" (155 mm) |
| Package weight | 15.1 lbs (6.85 kg) |
| Packaging data | |
| Package width | 4.29" (109 mm) |
| Package depth | 75.8" (1925 mm) |
| Package height | 6.1" (155 mm) |
| Package weight | 15.1 lbs (6.85 kg) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
