The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.

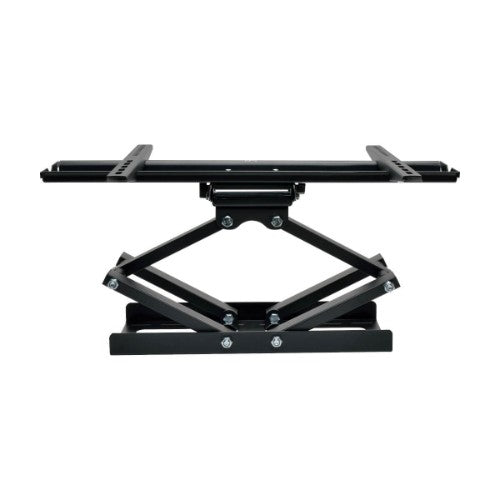

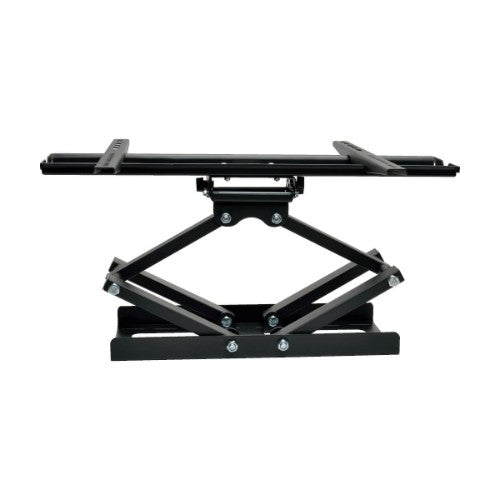

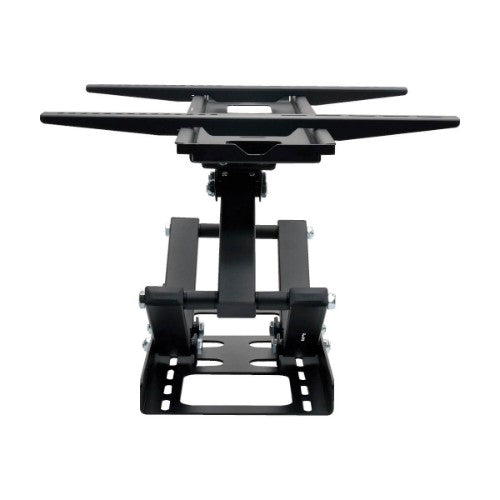

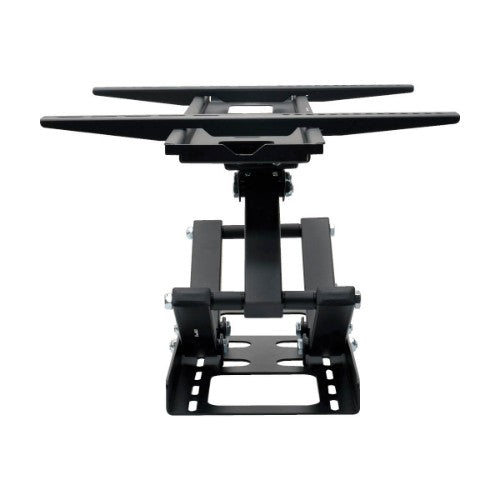

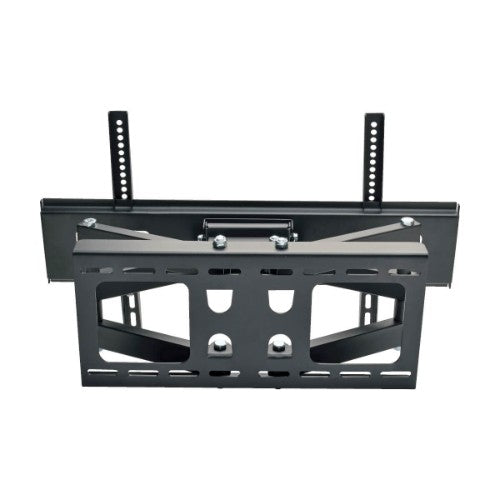

The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

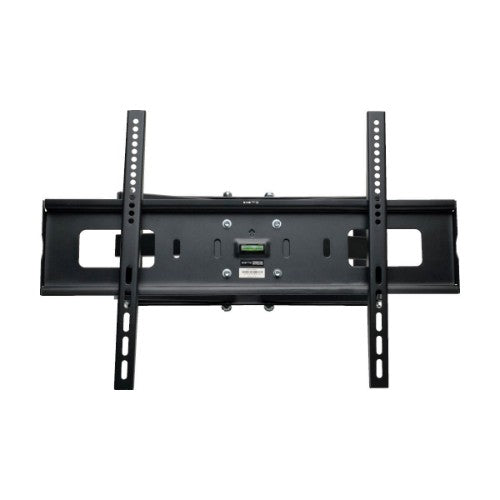

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm

Mounting
Maximum weight capacity	165.3 lbs (75 kg)
Minimum screen size	37"
Maximum screen size	70"
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,500 x 200,500 x 300,500 x 400,600 x 300,600 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Ergonomics
Height adjustment	Yes
Tilt angle range	-15 - 15°
Swivel angle range	-3 - 3°
Swivel angle	120°
Design
Product colour	Black
Technical details
Mounting type	Wall
Country of origin	China
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	23.7" (601 mm)
Depth	20.6" (524 mm)
Height	17.3" (440 mm)
Weight	17.4 lbs (7.88 kg)
Packaging data
Package width	9.5" (241.3 mm)
Package depth	27.9" (708.7 mm)
Package height	4.4" (111.8 mm)
Package weight	20.6 lbs (9.34 kg)
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	9.9" (251.5 mm)
Master (outer) case length	28.3" (718.8 mm)
Master (outer) case height	10" (254 mm)
Master (outer) case gross weight	42.1 lbs (19.1 kg)
Products per master (outer) case	2 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332187434
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Country of origin	China
