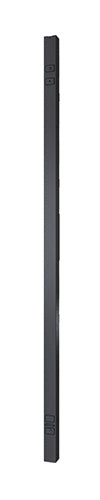

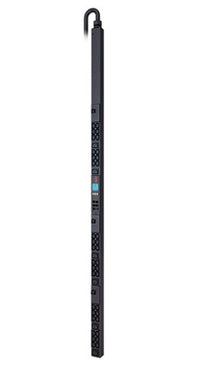

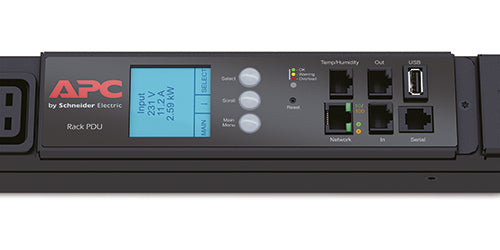

APC AP8868 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Part number
AP8868
$2,072.49 CAD
APC AP8868, Metered, 0U, Vertical, Black, 42 AC outlet(s), CS8365
Description
APC AP8868. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), Input connection type: CS8365, Output connections: 36 x IEC 320 C13 6 x IEC 320 C19. Cable length: 72" (1.83 m). Nominal input voltage: 208 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 208 V. Compliance certificates: RoHS, Certification: cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCISpecifications
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | Black |
| Certification | cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |

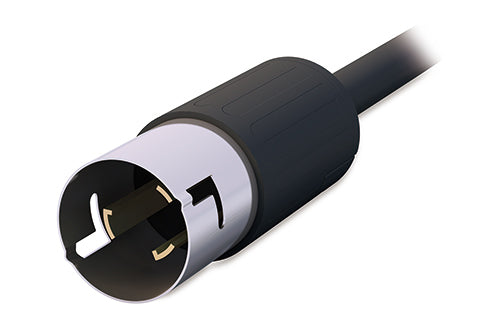

| Input connection type | CS8365 |
| Output connections | 36 x IEC 320 C13 6 x IEC 320 C19 |
| Features | |
| Cable length | 72" (1.83 m) |
| Certification | cUL, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC, ICES-003, UL, VCCI |
| Ergonomics | |
| Cable length | 72" (1.83 m) |
| Power | |
| Nominal input voltage | 208 V |
| Nominal output voltage | 208 V |
| Load capacity | 10000 VA |
| Maximum input current per phase | 35 A |
| Maximum total current draw per phase | 35 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 2.01 x 72" (56 x 51 x 1829 mm) |
| Weight | 18.8 lbs (8.52 kg) |
| Width | 2.2" (56 mm) |
| Depth | 2.01" (51 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.69" (170 mm) |
| Package depth | 4.41" (112 mm) |
| Package height | 80.7" (2050 mm) |
| Package weight | 25.1 lbs (11.4 kg) |
| Package dimensions (WxDxH) | 6.69 x 4.41 x 80.7" (170 x 112 x 2050 mm) |
| Packaging data | |
| Package width | 6.69" (170 mm) |
| Package depth | 4.41" (112 mm) |
| Package height | 80.7" (2050 mm) |
| Package weight | 25.1 lbs (11.4 kg) |
| Package dimensions (WxDxH) | 6.69 x 4.41 x 80.7" (170 x 112 x 2050 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 51678.25 |
| Compliance certificates | RoHS |
