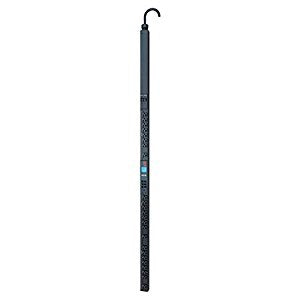

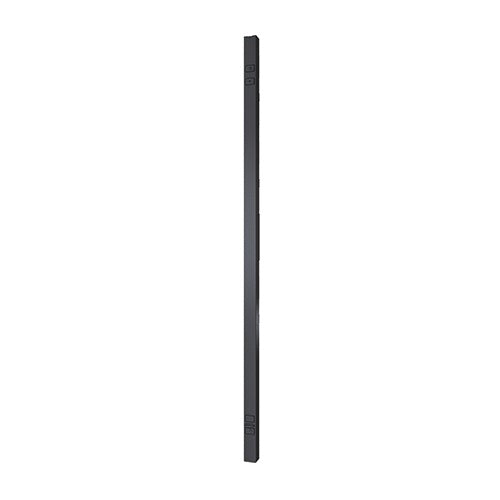

APC AP8632 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
AP8632
$2,590.61 CAD
Rack PDU 2G, Metered-by-Outlet with Switching, ZeroU, 30A, 100-120V, (24) 5-20R
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Specifications
| Design | |
|---|---|
| PDU types | Switched |
| Mounting | Vertical |
| Product colour | Black |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA L5-20R |
| Features | |
| Package type | Box |
| Cable length | 118.1" (3 m) |
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
| Ergonomics | |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 100 - 120 V |
| Maximum power | 2900 W |
| Maximum current | 30 A |
| Nominal output voltage | 100-120 V |
| Maximum input current per phase | 30 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.17 x 2.01 x 72" (55 x 51 x 1829 mm) |
| Weight | 17.7 lbs (8.05 kg) |
| Width | 2.17" (55 mm) |
| Depth | 2.01" (51 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.46" (164 mm) |
| Package depth | 4.69" (119 mm) |
| Package height | 80.4" (2041 mm) |
| Package weight | 22.3 lbs (10.1 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.69 x 80.4" (164 x 119 x 2041 mm) |
| Packaging data | |
| Package type | Box |
| Package width | 6.46" (164 mm) |
| Package depth | 4.69" (119 mm) |
| Package height | 80.4" (2041 mm) |
| Package weight | 22.3 lbs (10.1 kg) |
| Package dimensions (WxDxH) | 6.46 x 4.69 x 80.4" (164 x 119 x 2041 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
