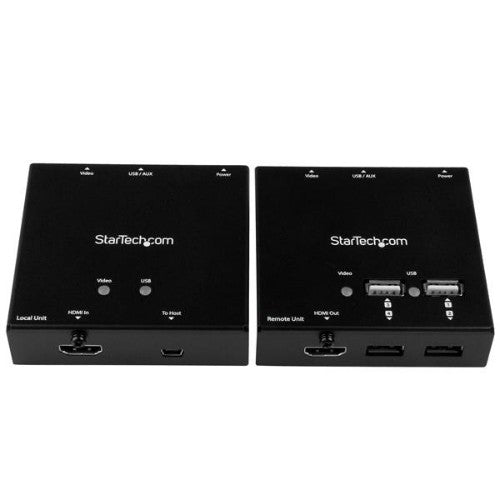

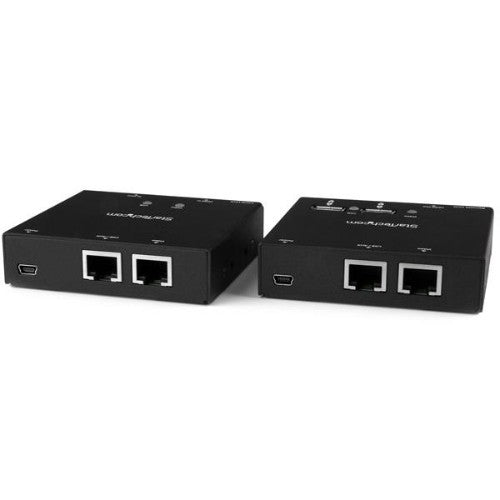

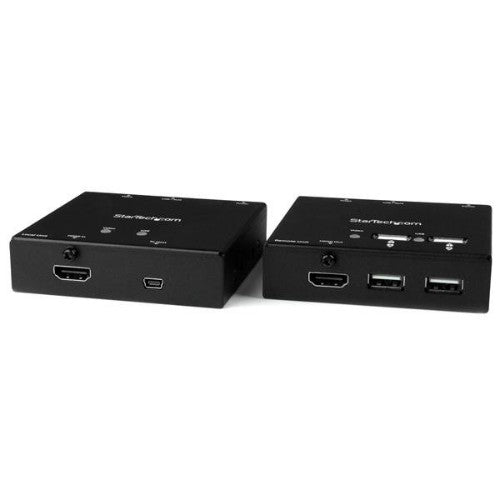

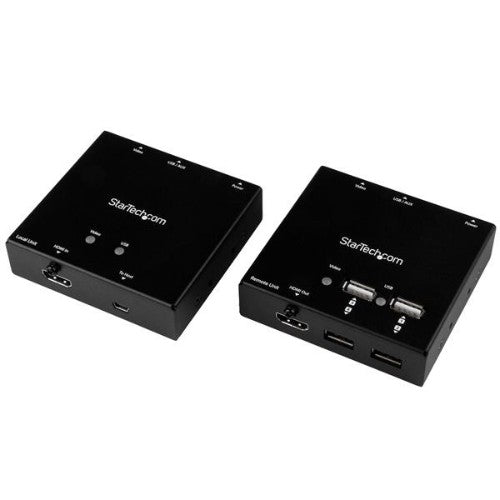

Extend 1080p video and four USB peripheral devices to a remote location

This HDMI extender kit lets you transmit your 1080p HD video source to your remote HDMI display at distance of up to 165 ft. away (50 m) using shielded CAT6 cabling. The extender features a built-in 4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location.

Crystal-clear picture quality

Using this HDMI extender, you can maintain the quality of your high-definition video signal along with the accompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supports resolutions up to 1920x1200 or 1080p - perfect for dazzling your audience in remote digital-signage applications in hospitals or at shopping centers.

Hassle-free remote USB integration

The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for flash drives, printers, scanners, external hard drives and I/O devices. Remote USB extension also enables you to remotely control your source device, which is ideal for adding touchscreen interfaces at your display in market or POS kiosks.

Easy installation and setup

For hassle-free setup the HDMI extender offers easy plug-and-play installation with no additional software or drivers required. Plus, the extender passes the EDID information included in your HDMI signal, and automatically adjusts video equalization ensuring you won’t have to configure it manually. Mounting hardware is also included, for a tidy and professional installation.

Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.

The ST121USBHD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extension
- Easy remote peripheral integration, with a built-in 4-port USB hub
- Tidy, professional installation using the included mounting hardware

Features
Type	AV transmitter & receiver
Cable types supported	Cat5, Cat5e, Cat6
Colour depth	48 bit
Carrier frequency	38 kHz
Maximum refresh rate	60 Hz
Maximum transfer distance	1968.5" (50 m)
Supported video modes	1080p
Product colour	Black
Certification	CE, FCC, TAA, REACH
Ports & interfaces
RJ-45 input ports	2
RJ-45 output ports	2
USB ports quantity	7
HDMI in	1
Number of HDMI outputs	1
USB connector type	Mini-USB B, USB Type-A
Connectivity technology	Wired
Power
Output current	1 A
Power plug type	Type N
Power consumption (typical)	5 W
External power adapter	Yes
Operating voltage	5 V
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Weight	16.2 oz (460 g)
Width	3.23" (82 mm)
Height	0.827" (21 mm)
Depth	3.23" (82 mm)
Packaging data
Package width	12.2" (309 mm)
Package weight	2.36 lbs (1.07 kg)
Package height	2.8" (71 mm)
Package dimensions (WxDxH)	6.89 x 12 x 2.91" (175 x 306 x 74 mm)
Package depth	7.09" (180 mm)

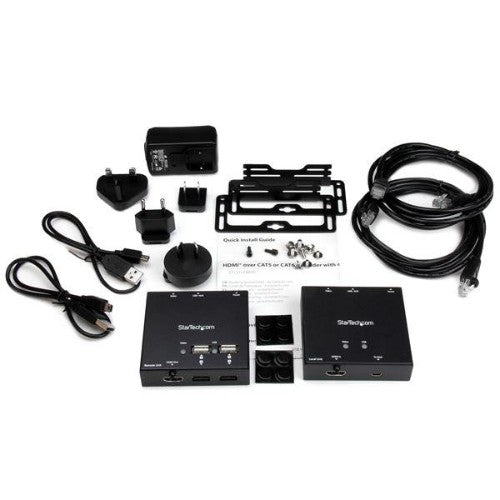

Packaging content
Quick start guide	Yes
Cables included	LAN (RJ-45), USB
AC adapter included	Yes
Technical details
Audio support	Yes
Compliance certificates	RoHS
