StarTech.com SV231HDMIUA KVM switch Black
272.13 CAD
Skip to product information
In stock
StarTech.com SV231HDMIUA KVM switch Black
Part number
SV231HDMIUA
272.13 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.1 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Number of microphone inputs | 3 |
| Mouse port type | USB |
| Video port type | HDMI |
| Headphone outputs | 3 |
| Console USB ports quantity | 4 |

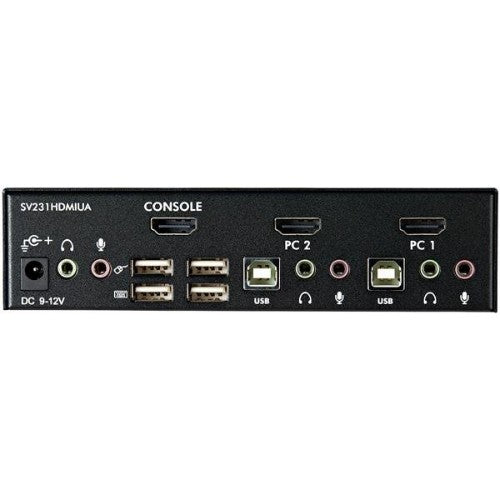

| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Daisy chain | No |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Mean time between failures (MTBF) | 126813 h |
| Certification | R0HS |
| Display | |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Input voltage | 100 - 240, 12 V |
| Video | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 4.92" (125 mm) |
| Depth | 2.76" (70 mm) |
| Height | 1.57" (40 mm) |
| Weight | 22.4 oz (634 g) |
| Package width | 7.4" (188 mm) |
| Package depth | 9.84" (250 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.43 lbs (1.1 kg) |
| Packaging data | |
| Package width | 7.4" (188 mm) |
| Package depth | 9.84" (250 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.43 lbs (1.1 kg) |

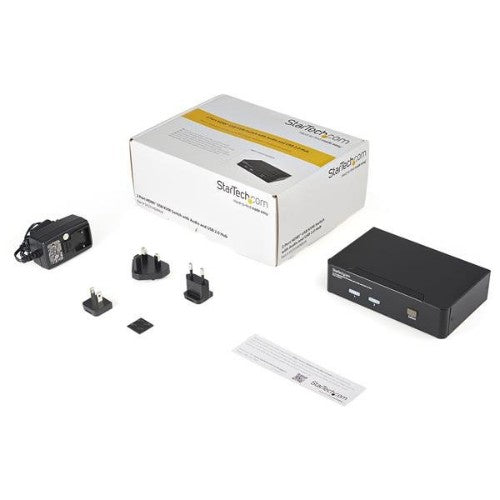

| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | R0HS |
| Other features | |
| Connectivity technology | Wired |
| Power requirements | AC 110 - 240 V |
| Ports quantity | 2 |
| Dimensions (WxDxH) | 4.91 x 2.76 x 1.57" (124.8 x 70 x 40 mm) |
| I/O ports | 1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F) |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
