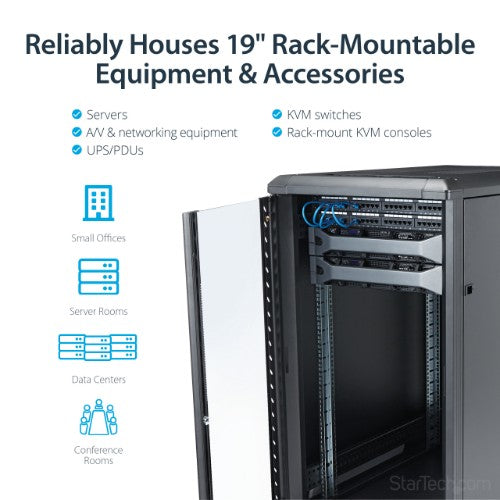

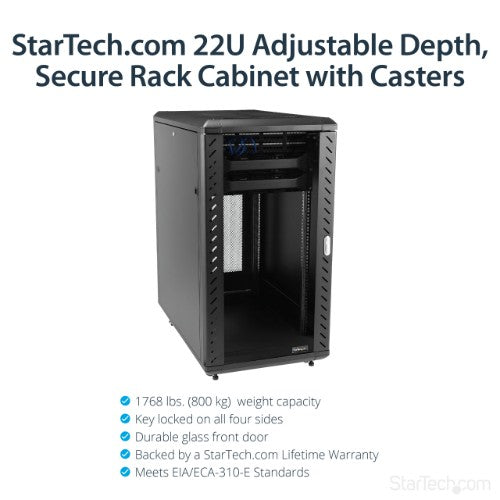

Securely store servers, network and telecommunications equipment in this 22U server rack

This server rack provides 22U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19" rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).

Hassle-free equipment installation

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

With adjustable mounting rails you can easily change the rail depth to up to 32.7 in. (830 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

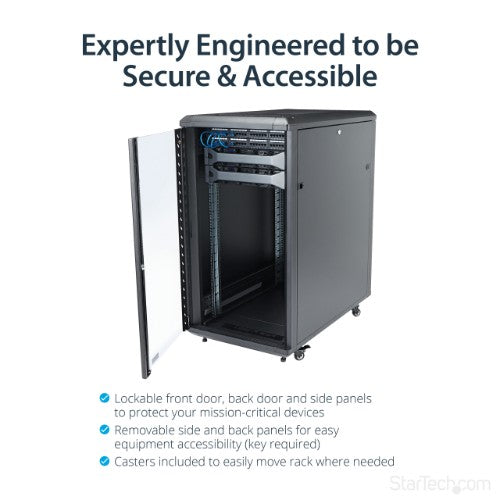

Securely protect your equipment while still being able to see it

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

The rack also has removable side panels with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Save money, with a cost effective, compact shipping container

The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

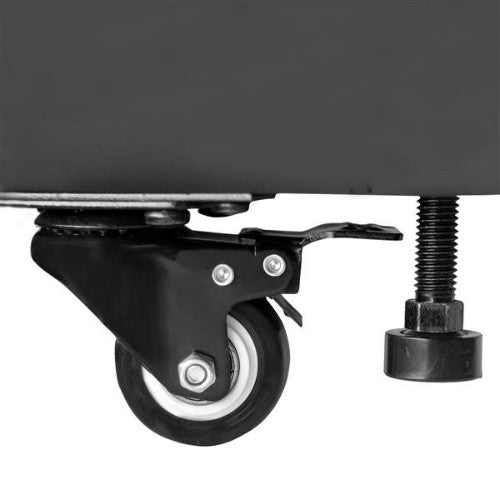

Maximum Maneuverability, with casters included

The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature

The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that's cost effective and ensures your equipment runs at an optimal temperature.

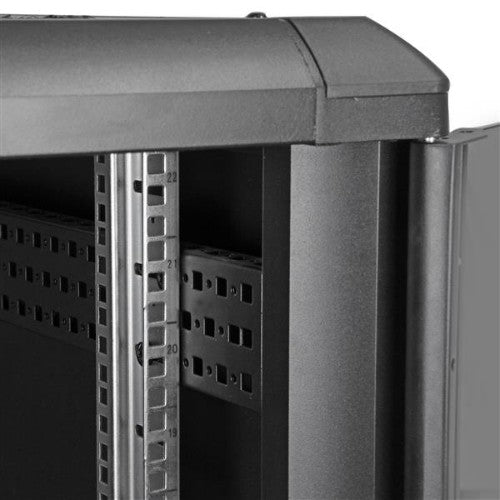

The top ceiling panel features square venting holes that are cage nut compatible, which provide mounting points that enable you to add additional equipment at the top of your rack.

The RK2236BKF is backed by a lifetime StarTech.com warranty with free technical support.

The StarTech.com Advantage

Weight & dimensions
Package width	42" (1068 mm)
Package depth	46.3" (1175 mm)
Package height	11.5" (292 mm)
Package weight	166 lbs (75.3 kg)
Mounting depth (min)	5.51" (14 cm)
Width	23.7" (603 mm)
Depth	39.6" (1005 mm)
Height	43.8" (1112 mm)
Inner width	22.8" (58 cm)
Inner depth	39" (99 cm)
Weight	138 lbs (62.6 kg)
Mounting depth (max)	32.7" (83 cm)
Packaging content
Mounting kit	Yes
Nuts included	Yes
Number of nuts	20
Screws included	Yes
Number of screws	20
Features
Castor wheels	Yes
Adjustable mounting rails	No
Removable front door	Yes
Back door construction	Steel
Front door construction	Steel
Cable management	No
Mounting hole shape	Square
Side panel key lock	Yes
Type	Freestanding rack
Rack capacity	22U
Number of fans	0 fan(s)
Maximum weight capacity	1763.7 lbs (800 kg)
Key lock	Yes
Frame type	Closed
Product design	4-post
Product colour	Black
Material	Steel
Certification	REACH
Packaging data
Mounting kit	Yes
Nuts included	Yes
Number of nuts	20
Package width	42" (1068 mm)
Package depth	46.3" (1175 mm)
Package height	11.5" (292 mm)
Package weight	166 lbs (75.3 kg)
Screws included	Yes
Number of screws	20
Technical details
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Rack capacity	22U
Logistics data
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
