2 left

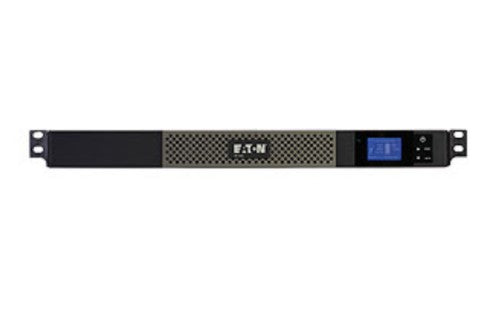

Eaton 5P Rackmount uninterruptible power supply (UPS) 1.44 kVA 1100 W 5 AC outlet(s)
Part number
5P1500R
$1,374.68 CAD
1440VA, 1100W, 120V, 50/60 Hz, 5-15P Plug, 5 x 5-15R Out, RS-232, USB, 1U
Description
The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.Specifications
| Power | |
|---|---|
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| AC outlets quantity | 5 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| LED indicators | Yes |
| Features | |
| Output power capacity | 1.44 kVA |
| Output power | 1100 W |
| Input operation voltage (min) | 89 V |
| Input operation voltage (max) | 151 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Efficiency | 97% |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 13 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Certification | UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC |
| Cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 17.2" (438 mm) |
| Depth | 21.8" (554 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 44.1 lbs (20 kg) |
| Certificates | |
| Certification | UL 1778, UL497A cULus, CE IEC 62040-2 C1-C2 / EN 55024 / CISPR22 / FCC |
