Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT3000LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

10 Outlets Protect Your Connected Components

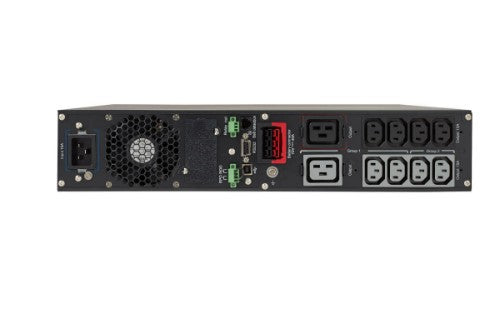

Eight C13 and two C19 outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.

Versatile Installation Options

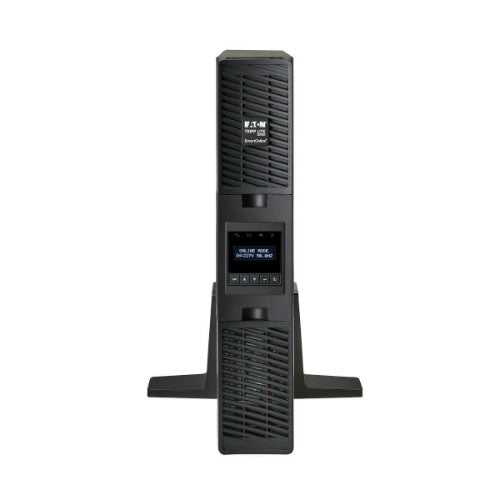

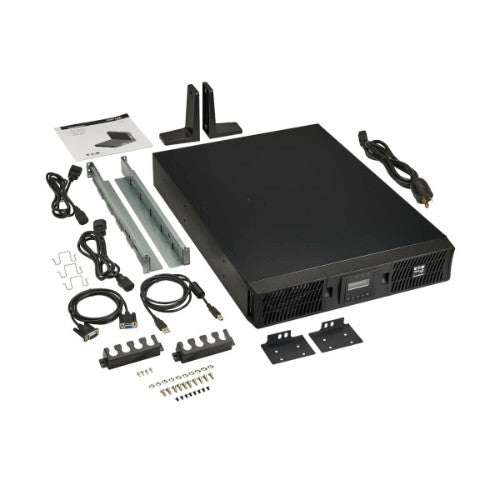

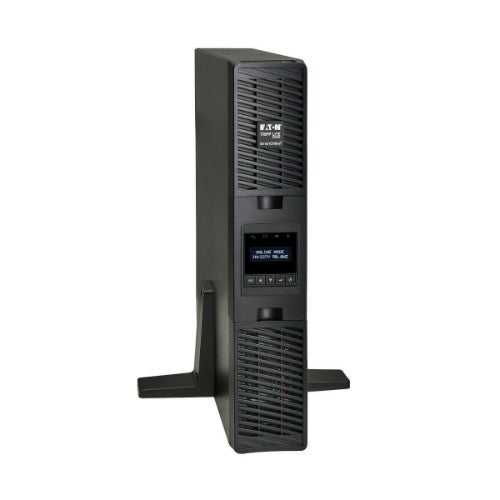

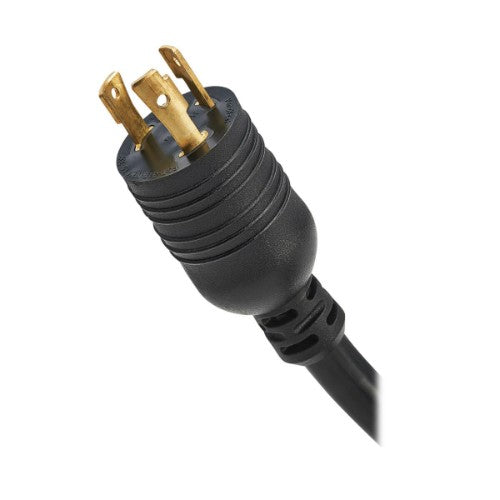

You can mount the SUINT3000LCD2U in just 2U of space in an EIA-standard 19-inch rack using the included hardware. You can also adapt it for tower installation using the included support stands or add the optional RK2PC (sold separately) for 2-post rack mounting. The detachable six-foot C19 to NEMA L6-20P power cord connects to a compatible AC outlet.

Power
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	570 J
Power factor	0.9
Output voltage regulation	10%
Output frequency regulation	50 - 60 Hz
Crest factor	3:1
Performance
UPS topology	Double-conversion (Online)
Number of phases	1
Number of input phases	1
EMI/RFI noise filtering	Yes
LED indicators	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Country of origin	China
Number of input phases	1
Output power	2700 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	570 J
EMI/RFI noise filtering	Yes
Power factor	0.9
Output voltage regulation	10%
Output frequency regulation	50 - 60 Hz
Crest factor	3:1
Number of phases	1
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
Battery
Typical backup time at half load	13.5 min
Typical backup time at full load	5 min
Hot-swap battery	Yes
Battery voltage	72 V
Design
Form factor	Rackmount/Tower
Country of origin	China
Rack capacity	2U
Product colour	Black
Certification	CE, ENERGY STAR, FCC Part 15 Category A (EMI), CSA (Canada), EAC, SASO, UL1778
LED indicators	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	CE, ENERGY STAR, FCC Part 15 Category A (EMI), CSA (Canada), EAC, SASO, UL1778
Weight & dimensions
Width	17.2" (437.9 mm)
Depth	24.3" (616 mm)
Height	3.46" (87.9 mm)
Weight	68.8 lbs (31.2 kg)
Package width	23.6" (599.9 mm)
Package depth	29.9" (760 mm)
Package height	9.45" (240 mm)
Package weight	86 lbs (39 kg)
Packaging data
Package width	23.6" (599.9 mm)
Package depth	29.9" (760 mm)
Package height	9.45" (240 mm)
Package weight	86 lbs (39 kg)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
Master (outer) case width	23.6" (599.9 mm)
Master (outer) case length	29.9" (760 mm)
Master (outer) case height	9.45" (240 mm)
Master (outer) case gross weight	86 lbs (39 kg)
Master (outer) case GTIN (EAN/UPC)	00037332185631
Other features
Number of phases	1
