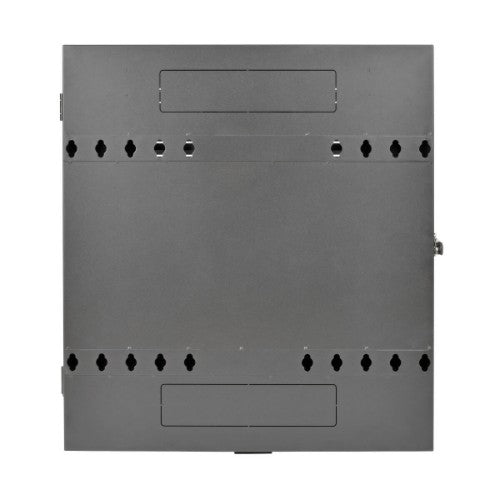

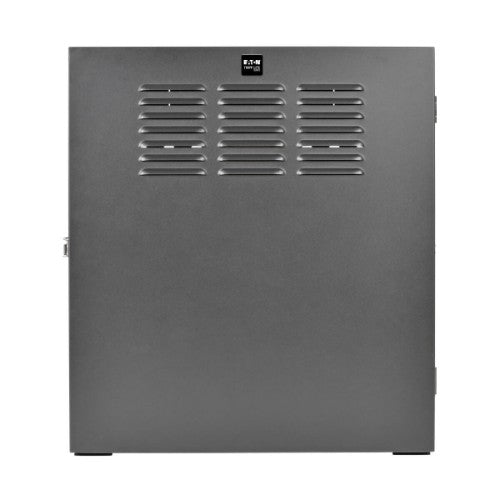

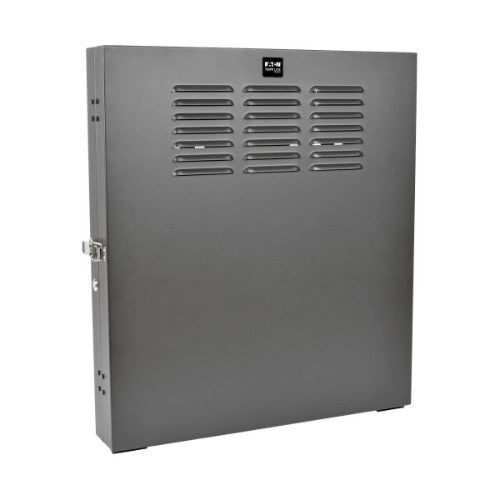

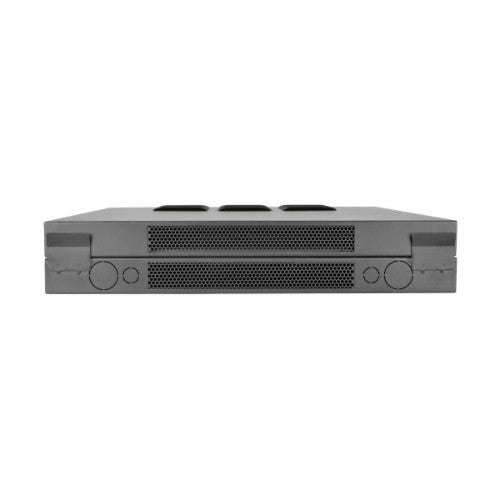

Tripp Lite SRWF2U rack cabinet 2U Wall mounted rack Black
548.03 CAD
Skip to product information
Out of stock
Tripp Lite SRWF2U rack cabinet 2U Wall mounted rack Black
Part number
SRWF2U
Sale price
548.03 CAD
Regular price
743.56 CAD
Taxes and shipping calculated at checkout.
Save
195.53 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
21.77 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Maximum load capacity of 150 lbs (68 kgs)
- Locking steel cabinet vented to keep equipment cool
- Secures 2U of 19 in. rack equipment up to 20 in. deep
- Includes additional 1U of space for patch panels
- Ships fully assembled for quick installation
The SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lbs (68 kgs).

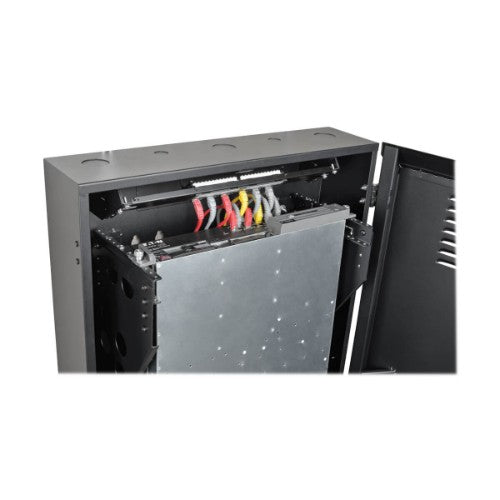

Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

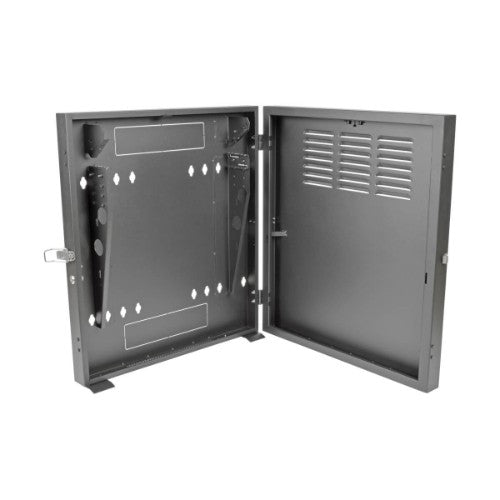

The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
| Weight & dimensions | |
|---|---|
| Package width | 31.1" (789.9 mm) |
| Package depth | 34.3" (870 mm) |
| Package height | 9.44" (239.8 mm) |
| Package weight | 48.1 lbs (21.8 kg) |
| Width | 25.6" (650.2 mm) |
| Depth | 4.5" (114.3 mm) |
| Height | 28.8" (731.5 mm) |
| Inner depth | 20" (50.8 cm) |
| Weight | 48.1 lbs (21.8 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Type | Wall mounted rack |
| Rack capacity | 2U |
| Maximum weight capacity | 149.9 lbs (68 kg) |
| Key lock | Yes |
| Product colour | Black |
| Material | Steel |
| Certification | EIA-310-E, RoHS |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 31.1" (789.9 mm) |
| Package depth | 34.3" (870 mm) |
| Package height | 9.44" (239.8 mm) |
| Package weight | 48.1 lbs (21.8 kg) |
| Technical details | |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 2U |
| Logistics data | |
| Master (outer) case width | 31.1" (789.9 mm) |
| Master (outer) case length | 34.3" (870 mm) |
| Master (outer) case height | 9.44" (239.8 mm) |
| Master (outer) case gross weight | 48.1 lbs (21.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
