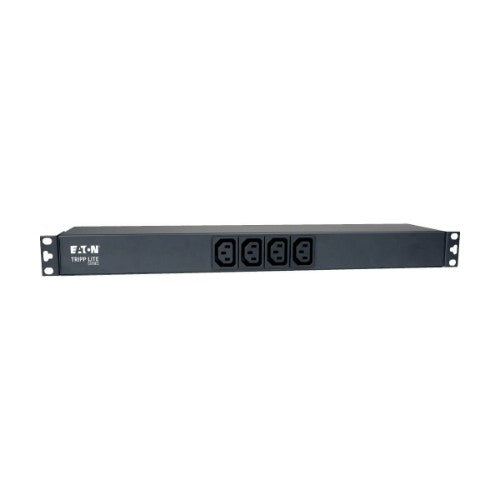

Tripp Lite PDU12IEC power distribution unit (PDU) 20 AC outlet(s) 1U Black
331.55 CAD
Skip to product information
Out of stock
Tripp Lite PDU12IEC power distribution unit (PDU) 20 AC outlet(s) 1U Black
Part number
PDU12IEC
Sale price
331.55 CAD
Regular price
448.63 CAD
Taxes and shipping calculated at checkout.
Save
117.08 CAD
Off
26%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.68 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

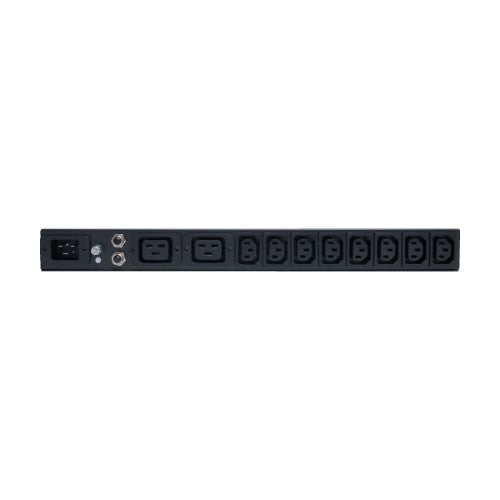

- C20 inlet accepts wide variety of user-supplied power cords

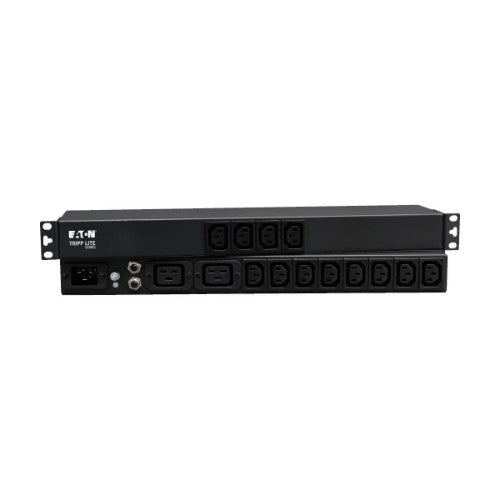

- 14 total outlets—8 rear C13, 2 rear C19 and 4 front C13
- Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
- Switchless design prevents accidental shutdown
- Reversible all-metal housing
- Installs in rack, on wall or under counter
The PDU12IEC 1.9/3.8kW Single-Phase 120–240V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU12IEC features a single load bank with 14 total outlets—eight rear C13, two rear C19 and four front C13. The C20 inlet accepts a variety of user-provided power cords that connect to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and a PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 16A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and a PDUSIDEBRKT accessory (sold separately), you can adapt the PDU12IEC for vertical 0U rack-mounting.
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Horizontal |
| Product colour | Black |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | C20 coupler |
| AC outlets quantity | 20 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 100-240 V |
| Maximum current | 16 A |
| Nominal output voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 3.2 lbs (1.45 kg) |
| Width | 17.5" (445 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.73" (44 mm) |
| Package width | 20.6" (523.2 mm) |
| Package depth | 9.3" (236.2 mm) |
| Package height | 2.1" (53.3 mm) |
| Package weight | 3.7 lbs (1.68 kg) |
| Packaging data | |
| Package width | 20.6" (523.2 mm) |
| Package depth | 9.3" (236.2 mm) |
| Package height | 2.1" (53.3 mm) |
| Package weight | 3.7 lbs (1.68 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332116250 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 20.7" (525.8 mm) |
| Master (outer) case length | 13.6" (345.4 mm) |
| Master (outer) case height | 10.1" (256.5 mm) |
| Master (outer) case gross weight | 23.6 lbs (10.7 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332116250 |
