Tripp Lite N482-2M24-6M12 patch panel 1U
1,548.56 CAD
Skip to product information
Out of stock
Tripp Lite N482-2M24-6M12 patch panel 1U
Part number
N482-2M24-6M12
1,548.56 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.34 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- High Density Fiber Cassette for use with N482-01U and N482-02U High Density Fiber Enclosure Panels
- 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO ( Male w/Pins ) connections to (x6) 12-Fiber OM4 MTP/MPO connections ( Male w/Pins )
- Polarity B, Optimized for Parallel Optics, Base-8 Connectivity
- Guaranteed compatibility when used with recommended cabling
- Designed specifically for use with cables, such as the N844- and N846-Series cables
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Max insertion loss of 0.35dB

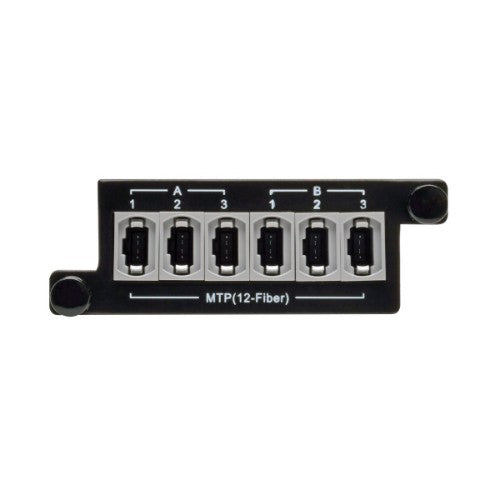

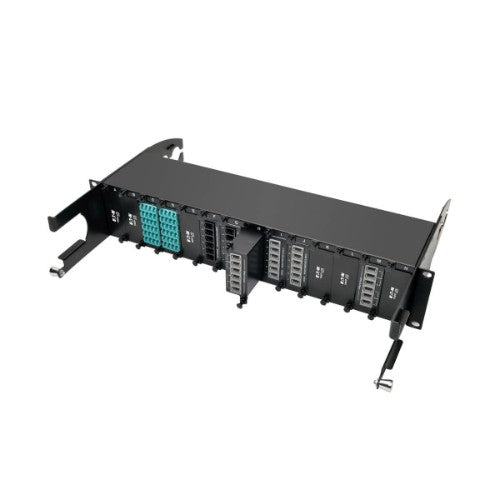

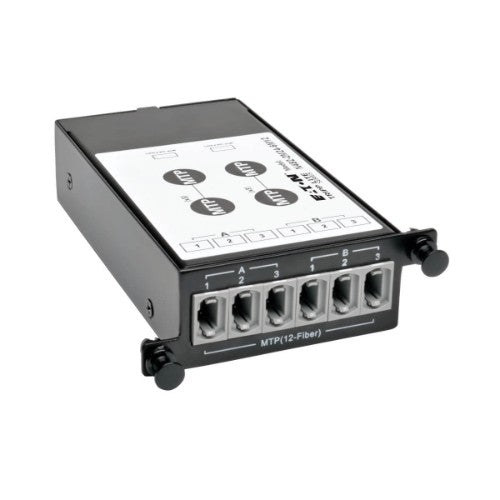

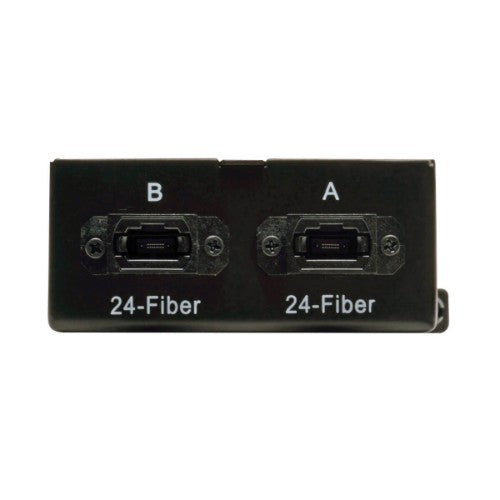

The N482-2M24-6M12 is a high-density 100/120 Gb to 40 Gb Breakout Cassette with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber, OM4, MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended cabling, such as the N844- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Max insertion loss of 0.35dB. Constructed of heavy-duty steel housing.
| Network | |
|---|---|
| Maximum data transfer rate | 120000 Mbit/s |
| Ports quantity | 6 |
| Connector(s) | MTP |
| Design | |
| Rack capacity | 1U |
| Mounting | Rack mounting |
| Material | Steel |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 3.5" (88.9 mm) |
| Weight | 9.17 oz (260 g) |
| Height | 1.2" (30.5 mm) |
| Depth | 4.7" (119.4 mm) |
| Package weight | 12 oz (340 g) |
| Package width | 7.9" (200.7 mm) |
| Package height | 2" (50.8 mm) |
| Packaging data | |
| Package weight | 12 oz (340 g) |
| Package depth | 4.7" (119.4 mm) |
| Package width | 7.9" (200.7 mm) |
| Package height | 2" (50.8 mm) |
| Features | |
| Rack capacity | 1U |
| Mounting | Rack mounting |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per pallet | 1 pc(s) |
| Master (outer) case gross weight | 21.7 lbs (9.84 kg) |
| Products per master (outer) case | 27 pc(s) |
| Master (outer) case width | 15.4" (391.2 mm) |
| Master (outer) case length | 12.8" (325.1 mm) |
| Master (outer) case height | 12.8" (325.1 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332184556 |
| Country of origin | China |
