Tripp Lite B004-DPUA4-K KVM switch Black
679.14 CAD
Skip to product information
Out of stock
Tripp Lite B004-DPUA4-K KVM switch Black
Part number
B004-DPUA4-K
679.14 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.68 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Connect peripherals to built-in 2-port USB 3.0 hub
- Switch among computers via front buttons or keyboard hotkeys
- Supports digital video resolutions up to 2560 x 1600
- Supports Displayport 1.1

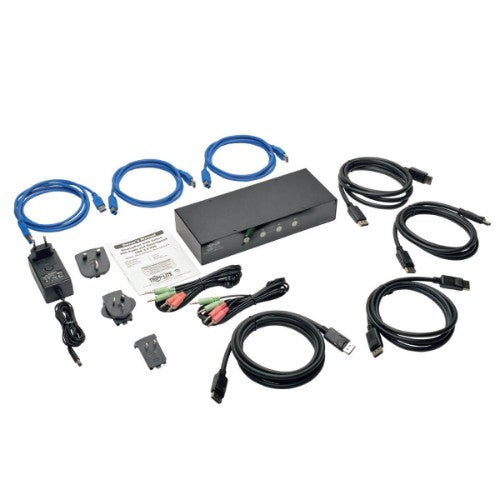

- Includes all necessary DisplayPort, USB 3.0 and audio cables
Access and Control Up to 4 Computers with One KVM Switch
Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1
Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio
Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices
Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| USB connector type | USB Type-A, USB Type-B |
| Number of microphone inputs | 4 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| USB 2.0 ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Headphone outputs | 4 |
| Display connection | Yes |
| DC-in jack | Yes |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB B |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Cable length | 70.9" (1.8 m) |
| Performance | |
| DDC/DDC2 supported | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Number of users | 1 user(s) |
| Design | |
| Product colour | Black |
| Cable length | 70.9" (1.8 m) |
| Rack mounting | No |
| LED indicators | Yes |
| Country of origin | China |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 9 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output current | 2 A |
| Input voltage | 100-240 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| Maximum resolution | 2560 x 1600 pixels |
| Technical details | |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Display connection | Yes |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Features | |
| Country of origin | China |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 8.1" (205.7 mm) |
| Depth | 3.9" (99.1 mm) |
| Height | 1.8" (45.7 mm) |
| Weight | 33.5 oz (950 g) |
| Package width | 6.2" (157.5 mm) |
| Package depth | 10.6" (269.2 mm) |
| Package height | 7.4" (188 mm) |
| Package weight | 5.91 lbs (2.68 kg) |
| Packaging data | |
| Package width | 6.2" (157.5 mm) |
| Package depth | 10.6" (269.2 mm) |
| Package height | 7.4" (188 mm) |
| Package weight | 5.91 lbs (2.68 kg) |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 19.4" (492.8 mm) |
| Master (outer) case length | 21.7" (551.2 mm) |
| Master (outer) case height | 8.5" (215.9 mm) |
| Master (outer) case gross weight | 37.5 lbs (17 kg) |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332188639 |
| Harmonized System (HS) code | 8517.62.0020 |
