Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot

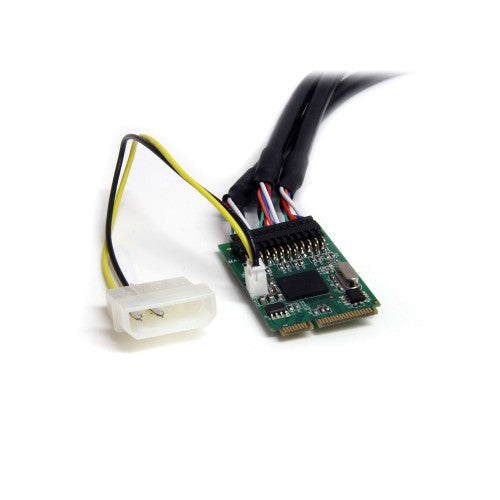

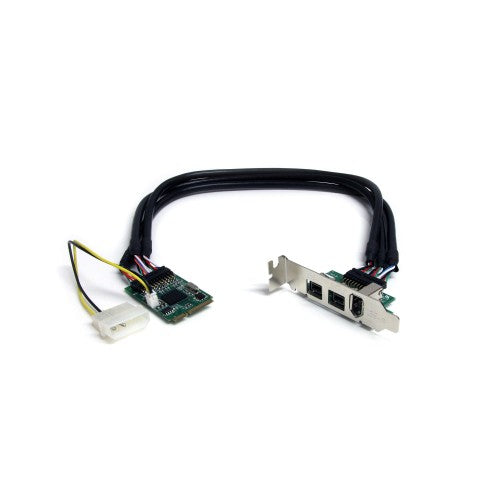

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | IEEE 1394/Firewire |
| Firewire (IEEE 1394) ports | 3 |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 1.1 |
| Performance | |
| Plug and Play | Yes |
| Chipset | Texas Instruments - XIO2213B |
| Hot-swap | Yes |
| Data transfer rate (max) | 0.8 Gbit/s |
| Product colour | Black, Stainless steel |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Internal | Yes |
| Hot-swap | Yes |
| Product colour | Black, Stainless steel |
| Features | |
| Plug and Play | Yes |
| Chipset | Texas Instruments - XIO2213B |
| Data transfer rate (max) | 0.8 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -54 - 150 °C |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2019 |
| Weight & dimensions | |
| Width | 1.18" (30 mm) |
| Depth | 1.97" (50 mm) |
| Height | 0.157" (4 mm) |
| Weight | 3.21 oz (91 g) |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 6.98 oz (198 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 6.98 oz (198 g) |
| Logistics data | |
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 11" (280 mm) |
| Master (outer) case length | 26.1" (663 mm) |
| Master (outer) case height | 7.95" (202 mm) |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Other features | |
| Chipset | Texas Instruments - XIO2213B |
