Product description

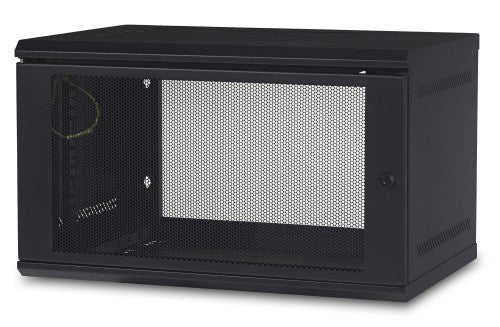

This compact lockable rack is suitable for all kinds of 19 inch IT/network equipment. With 6U/HE internal height and two adjustable rack mount styles, you can easily mount rack-mountable devices (max 329mm deep). Due to its limited dimensions and weight (9.4KG), it is easy to mount on the wall. Because the door can be mounted to open both right and left, it fits in almost any environment.

Easy transport
This APC patch cabinet is delivered unassembled, making this rack easy to transport and store.

Placement
This rack can be mounted on the wall as a patch, edge or network cabinet using 4 recesses at the rear (suitable for up to max m6 bolts). However, because its door is free from the ground, this server rack can also be placed upright. This makes it suitable for many environments. Installation materials for wall mounting are not included.

Cable and accessory integration

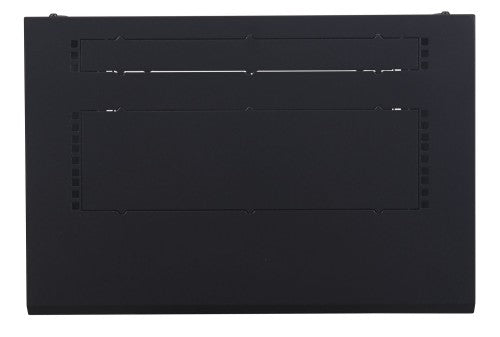

The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and thus made suitable as a cable outlet or for installing a patch panel (AR8452).

Easy assembly
This wall-mounted server rack is designed for quick and easy assembly and all necessary materials and tools for assembly except a spirit level are included, see manual. A template for wall mounting is also included.

Multiple sizes
The unassembled black NetShelter WX wall enclosures are available in three heights, 6U (AR106), 9U (AR109) and 12U (AR112). All 3 can handle a maximum static load of 90.7KG.

Rackmount styles

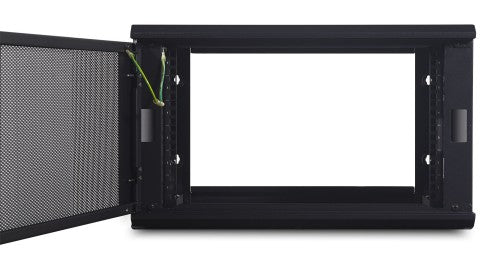

The two rackmount styles can be mounted in six positions in the rack and at each position it is possible to fine-tune the exact position up to 23 mm, see documentation.

Safety
Mounted network equipment in the rack is safe, because the door at the front is equipped with a lock. Two keys are included.

Warranty
The standard factory warranty is five years.


Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up to 60% less space than assembled alternatives. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top/bottom mounted. Top/bottom feature knockouts 1/2U of mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19 rack width, ships unassembled, 5 year APC warranty

Features
Size (imperial)	19"
Front door construction	Perforated
Type	Wall mounted rack
Rack capacity	6U
Maximum weight capacity	200 lbs (90.7 kg)
Product colour	Black
Material	Steel
Preassembled	No
Weight & dimensions
Package width	27.1" (688 mm)
Package depth	19.1" (485 mm)
Package height	11.5" (293 mm)
Package weight	32.2 lbs (14.6 kg)
Width	23.6" (600 mm)
Depth	15.7" (400 mm)
Height	14" (355 mm)
Weight	20.7 lbs (9.39 kg)
Size (imperial)	19"
Mounting depth (max)	13" (32.9 cm)
Packaging content
Manual	Yes
Packaging data
Manual	Yes
Package width	27.1" (688 mm)
Package depth	19.1" (485 mm)
Package height	11.5" (293 mm)
Package weight	32.2 lbs (14.6 kg)
Technical details
Harmonized System (HS) code	85381000
Total carbon footprint (kg of CO2e)	44.18
Rack capacity	6U
Logistics data
Harmonized System (HS) code	85381000
