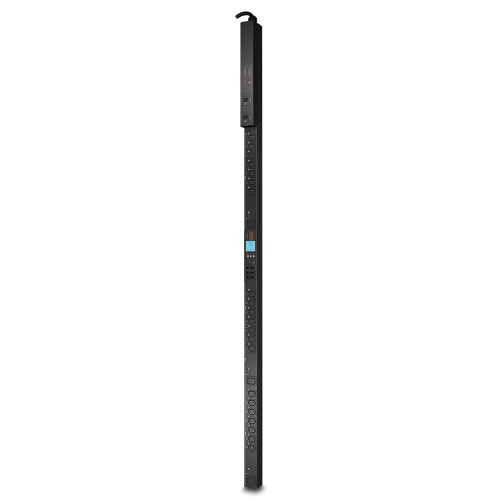

APC AP8641 power distribution unit (PDU) 24 AC outlet(s) 0U Black
2,718.77 CAD
Skip to product information
2 left
APC AP8641 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
AP8641
2,718.77 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
10.886 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
| Design | |
|---|---|
| PDU types | Switched |
| Product colour | Black |
| Certification | cUL,FCC 15 A,ICES-003,UL,VCCI A |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| AC outlets quantity | 24 AC outlet(s) |
| Features | |
| Cable length | 118.1" (3 m) |
| Certification | cUL,FCC 15 A,ICES-003,UL,VCCI A |
| Ergonomics | |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 200-230 V |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Maximum total current draw per phase | 30 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 2.01 x 72" (56 x 51 x 1829 mm) |
| Weight | 18.1 lbs (8.23 kg) |
| Width | 2.2" (56 mm) |
| Depth | 2.01" (51 mm) |
| Height | 72" (1829 mm) |
| Package width | 6.38" (162 mm) |
| Package depth | 4.65" (118 mm) |
| Package height | 80.2" (2038 mm) |
| Package weight | 23.1 lbs (10.5 kg) |
| Package dimensions (WxDxH) | 6.38 x 4.65 x 80.2" (162 x 118 x 2038 mm) |
| Packaging data | |
| Package width | 6.38" (162 mm) |
| Package depth | 4.65" (118 mm) |
| Package height | 80.2" (2038 mm) |
| Package weight | 23.1 lbs (10.5 kg) |
| Package dimensions (WxDxH) | 6.38 x 4.65 x 80.2" (162 x 118 x 2038 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 8153.67 |
| Compliance certificates | RoHS |
