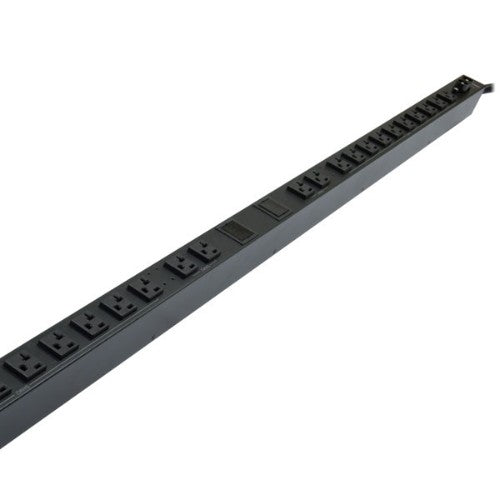

CyberPower PDU30MVT24F power distribution unit (PDU) 24 AC outlet(s) 0U Black
547.49 CAD
Skip to product information
Out of stock
CyberPower PDU30MVT24F power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
PDU30MVT24F
547.49 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
7.902 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

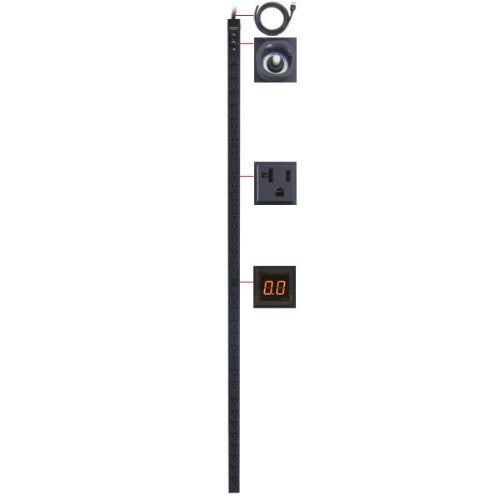

The CyberPower 24-outlet (24 Front) 0U vertical rack mount metered power distribution unit (PDU30MVT24F) provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 24 NEMA 5-20R (24 Front) output receptacles
- Single NEMA L5-30P twist lock plug
- 30-amp electrical capacity with dual 20-amp circuit breakers
- 120V AC - 50/60Hz
- 2 Front LCDs for real-time load monitoring
- 60” 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord
- 24 NEMA 5-20R (24 Front) output receptacles
- Single NEMA L5-30P twist lock plug
- 30-amp electrical capacity with dual 20-amp circuit breakers
- 120V AC - 50/60Hz
- 2 Front LCDs for real-time load monitoring
- 60” 0U vertical rack mount
- Rugged, industrial-grade metal housing
- 10-ft. power cord
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | UL60950_1 CSA C22.2 |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA L5-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | UL60950_1 CSA C22.2 |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Display | LCD |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 30 A |
| Nominal output voltage | 120 V |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight (imperial) | 11.40 lbs |
| Dimensions (W x D x H) (imperial) | 60 x 2.25 x 1.75" |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
