The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)

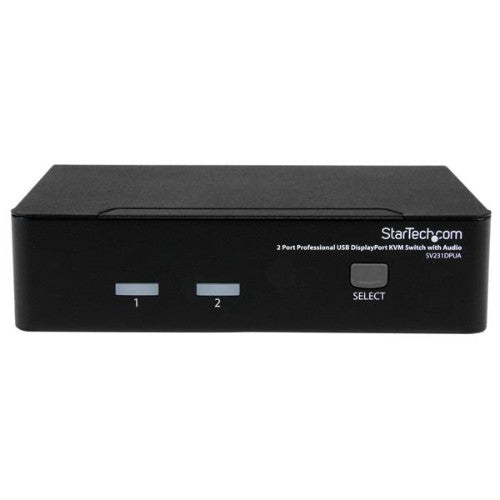

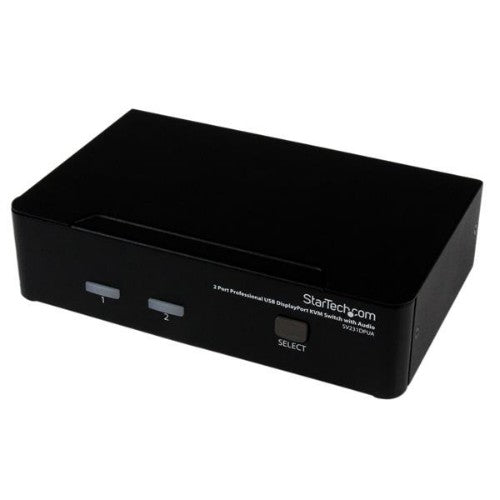

StarTech.com SV231DPUA KVM switch Black
Part number
SV231DPUA
Regular price
$332.66 CAD
Sale price
$330.81 CAD
StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio (SV231DPUA)
Description
Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audioThe SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 2 |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| Console USB ports quantity | 4 |

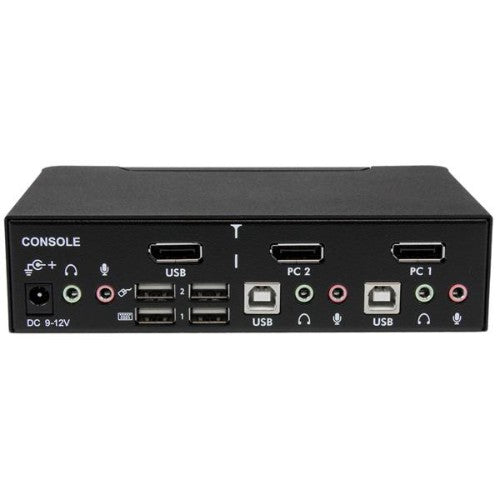

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Daisy chain | No |
| Audio channels | 7.1 |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, UL, FCC, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Output voltage | 12 V |
| Input current | 0.8 A |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| Power plug type | Type M |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, UK, US |
| Input voltage | 110 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| Technical details | |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 5.12" (130 mm) |
| Height | 1.73" (44 mm) |
| Weight | 2.43 lbs (1.1 kg) |
| Package width | 3.94" (100 mm) |
| Package depth | 9.84" (250 mm) |
| Package height | 7.13" (181 mm) |
| Package weight | 2.87 lbs (1.3 kg) |
| Packaging data | |
| Package width | 3.94" (100 mm) |
| Package depth | 9.84" (250 mm) |
| Package height | 7.13" (181 mm) |
| Package weight | 2.87 lbs (1.3 kg) |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, UL, FCC, REACH |
| Other features | |
| IP control | No |
| Audio support | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
