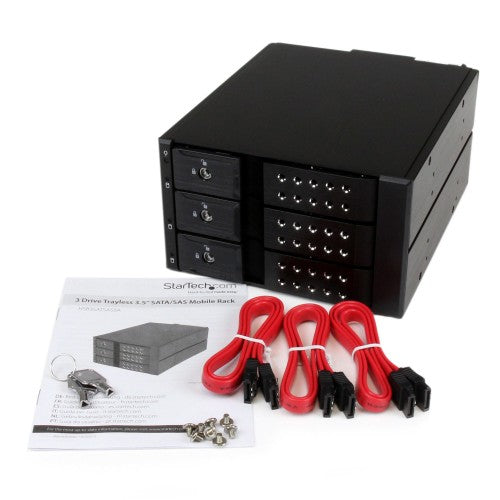

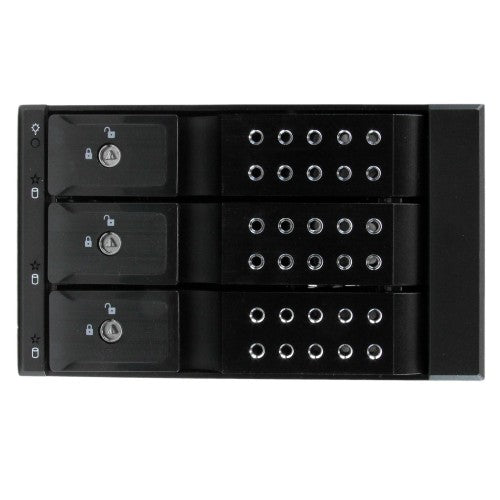

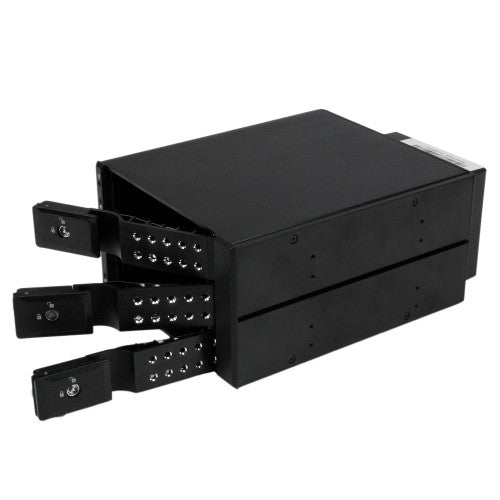

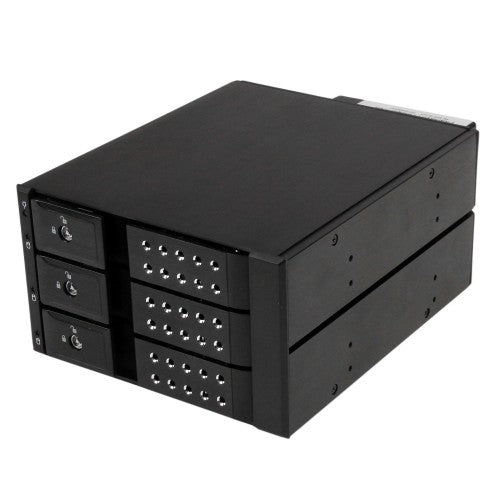

StarTech.com HSB3SATSASBA disk array Black
114.80 CAD
Skip to product information
1 left
StarTech.com HSB3SATSASBA disk array Black
Part number
HSB3SATSASBA
114.80 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.05 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD |
| Number of storage drives supported | 3 |
| Maximum supported storage capacity | 12 TB |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5" |
| Hot-swap drive bays | Yes |
| Data transfer rate | 6 Gbit/s |
| Ports & interfaces | |
| Host ports | 3 |
| Number of SATA power connectors | 2 |
| SATA power connector type | SATA 15-pin |
| SATA host port | Yes |
| Design | |
| Internal | No |
| Product colour | Black |
| LED indicators | Activity, Power |
| Number of fans | 1 fan(s) |
| Performance | |
| Backplanes support | Yes |
| Weight & dimensions | |
| Width | 5.71" (145 mm) |
| Depth | 7.64" (194.1 mm) |
| Height | 4.33" (110 mm) |
| Weight | 2.65 lbs (1.2 kg) |
| Package width | 7.05" (179 mm) |
| Package depth | 9.96" (253 mm) |
| Package height | 4.84" (123 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Packaging data | |
| Package width | 7.05" (179 mm) |
| Package depth | 9.96" (253 mm) |
| Package height | 4.84" (123 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Packaging content | |
| Cables included | SATA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 15.2" (386 mm) |
| Master (outer) case length | 20.6" (523 mm) |
| Master (outer) case height | 11.4" (290 mm) |
| Harmonized System (HS) code | 84717020 |
