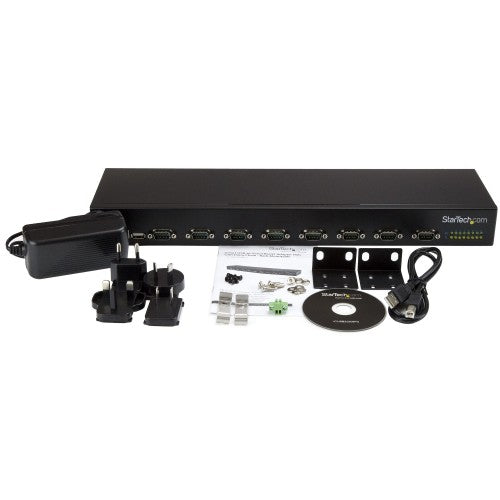

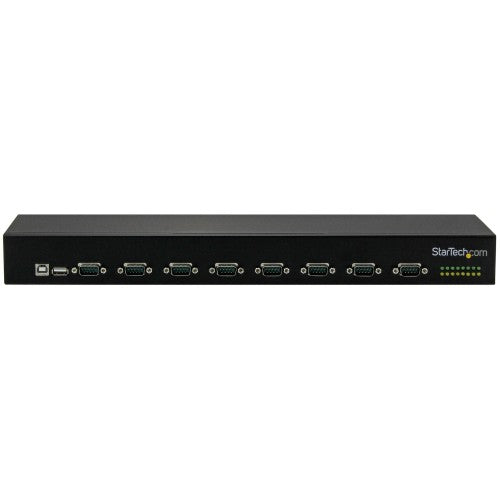

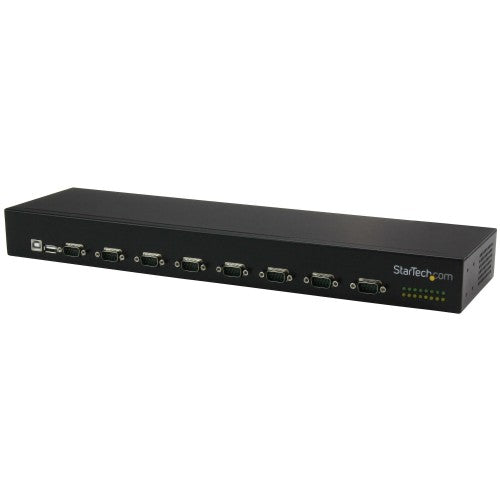

StarTech.com ICUSB23208FD interface hub USB 2.0 Black
398.29 CAD
Skip to product information
Out of stock
StarTech.com ICUSB23208FD interface hub USB 2.0 Black
Part number
ICUSB23208FD
398.29 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.097 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments
With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 |
| Ports quantity | 8 |
| Hub interfaces | Serial |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 8 |
| DC-in jack | Yes |
| Terminal block port | Yes |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Aluminum |
| Host interface | USB 2.0 |
| Power | |
| Power consumption (max) | 36 W |
| Input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type B |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | Windows XP Embedded |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Weight & dimensions | |
| Width | 4.72" (120 mm) |
| Depth | 16.9" (430 mm) |
| Height | 1.77" (45 mm) |
| Weight | 3 lbs (1.36 kg) |
| Package width | 17.7" (449 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 2.52" (64 mm) |
| Package weight | 4.63 lbs (2.1 kg) |
| Packaging data | |
| Package width | 17.7" (449 mm) |
| Package depth | 8.54" (217 mm) |
| Package height | 2.52" (64 mm) |
| Package weight | 4.63 lbs (2.1 kg) |
| Packaging content | |
| Quick installation guide | Yes |
| Included power plug types | AU, EU, NA, UK |
| Terminal block included | Yes |
| Cables included | USB |
| Drivers included | Yes |
| DIN rail kit included | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -65 - 150 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Performance | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| FIFO (First In, First Out) | 256 B |
| Baud rate | 921.6 Kbit/s |
| Mean time between failures (MTBF) | 67114 h |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84719000 |
| Logistics data | |
| Master (outer) case width | 18.6" (472 mm) |
| Master (outer) case length | 13.5" (344 mm) |
| Master (outer) case height | 9.29" (236 mm) |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Chipset | FTDI - FT4232 |
