ATEN CS1942DP KVM switch Black
Part number
CS1942DP
381.16 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.54 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)1
- Supports MST (Multi-Stream Transport)2
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- DisplayPort 1.2 compliant; HDCP compliant3
- Supports HD audio4
- Power on detection
- Firmware upgradable
- Note:
- 1.DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
- 2.MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
- 3.For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue.
- 4.HD audio through DisplayPort cannot be switched independently
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |

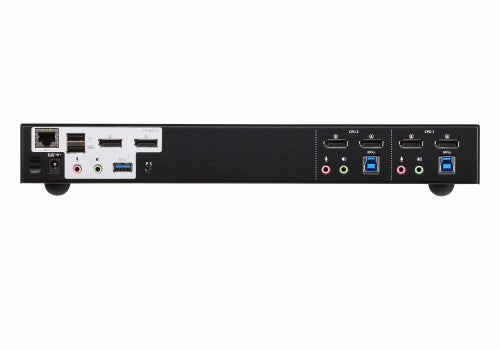

| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Number of microphone inputs | 4 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| Headphone outputs | 4 |
| HDCP | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Firmware upgradeable | Yes |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 99 s |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,5,99 s |
| HDCP | Yes |
| Daisy chain | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Technical details | |
| USB hub | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 6.17" (156.6 mm) |
| Depth | 13.2" (335 mm) |
| Height | 1.73" (44 mm) |
| Weight | 3.4 lbs (1.54 kg) |
| Packaging content | |

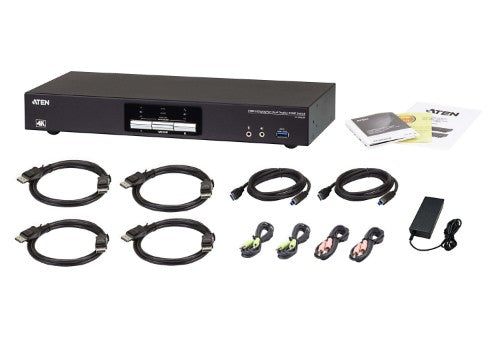

| Cables included | Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
