In stock
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage

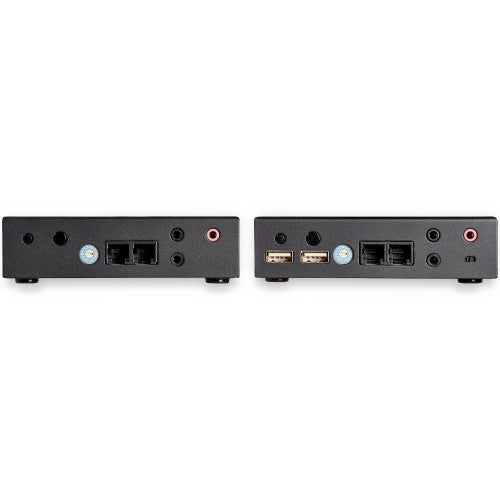

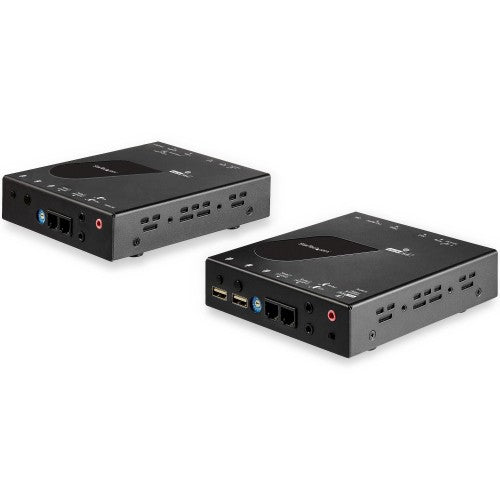

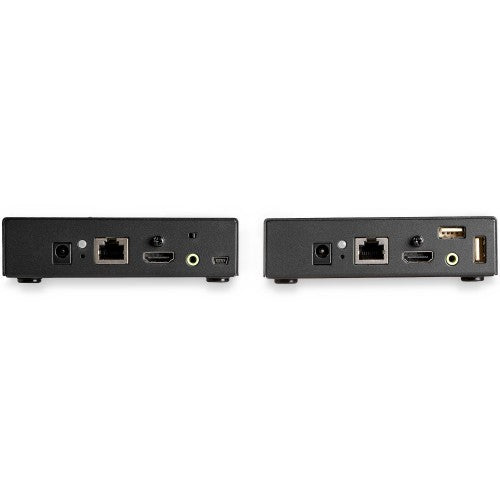

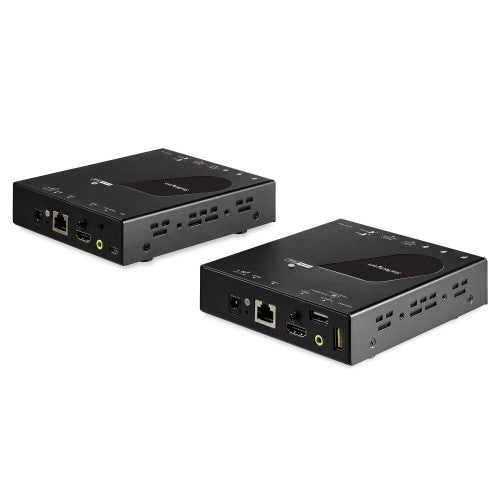

StarTech.com SV565HDIP KVM switch Black
Part number
SV565HDIP
$907.40 CAD
StarTech.com HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit (SV565HDIP)
Key Features
- REMOTE ACCESS: HDMI KVM extender over IP controls a KVM Switch/Console or PC from up to 328ft (100 m) away over Cat5e/6 Ethernet cable or over IP-enabled local area network (LAN) for unlimited range
- 4K VIDEO QUALITY: HDMI transmitter & extender kit achieves ultra HD resolutions up to 3840 x 2160 4K at 30Hz supports large video signage display at remote locations; Mounting hardware incl.
- HDMI / 4K 30Hz 3840 x 2160 / USB 2.0 HID / OS Independent / 2 x 3.5mm Analog Audio + Mic / Digital 7.1 Surround Audio / EDID Passthrough / IP Routable/Switchable / 100m Max Direct Connection / 2yr War
- ADVANCED AUDIO & VIDEO: EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI offers theatre-grade sound
- VIDEO WALL SUPPORT: Connect receivers (sold separately) to distribute HDMI signal to multiple displays at remote location or combine source to create a 9x9 video wall; Configure using an intuitive GUI
Description
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Keyboard port type | USB |
| Number of microphone inputs | 2 |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 8 |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum operating distance | 3937" (100 m) |
| Daisy chain | No |
| Chipset | ASPEED - AST1520 |
| Audio channels | 7.1 |
| Design | |
| Product colour | Black |
| Mean time between failures (MTBF) | 60000 h |
| LED indicators | Yes |
| Hot keys | No |
| Certification | CE, FCC, TAA, REACH |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Output voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, JP, UK |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 5.12" (130 mm) |
| Height | 1.1" (28 mm) |
| Weight | 21.5 oz (610 g) |
| Package width | 14.4" (365 mm) |
| Package depth | 7.68" (195 mm) |
| Package height | 9.25" (235 mm) |
| Packaging data | |
| Package width | 14.4" (365 mm) |
| Package depth | 7.68" (195 mm) |
| Package height | 9.25" (235 mm) |

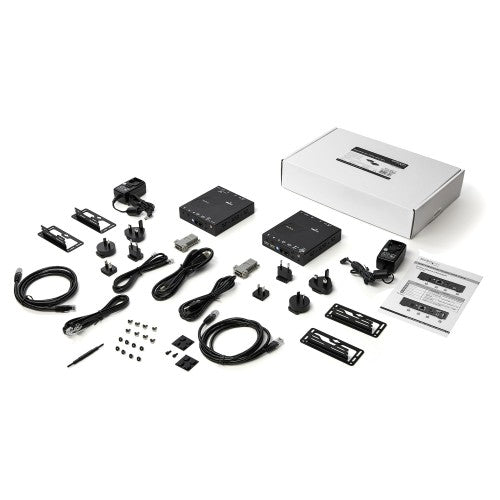

| Packaging content | |
| Rubber feet | Yes |
| Cables included | HDMI, LAN (RJ-45), Phone (RJ-11), USB |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| IP control | No |
| Maximum operating distance | 3937" (100 m) |
| Hot keys | No |
| Logistics data | |
| Master (outer) case width | 15.2" (385 mm) |
| Master (outer) case length | 19.5" (495 mm) |
| Master (outer) case height | 10.4" (265 mm) |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
