Integration Flexibility
Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.
PoE+ Powered
No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras.
EdgeSmart Management
Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

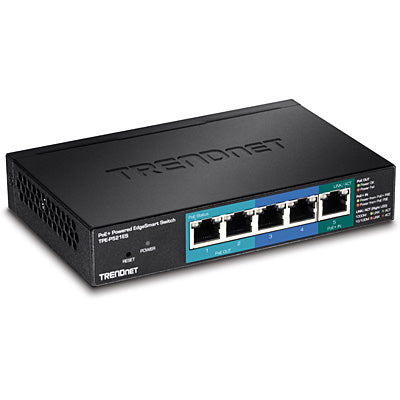

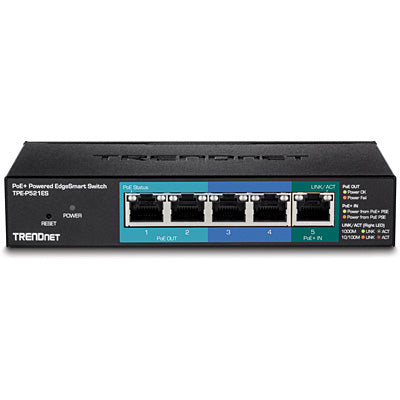

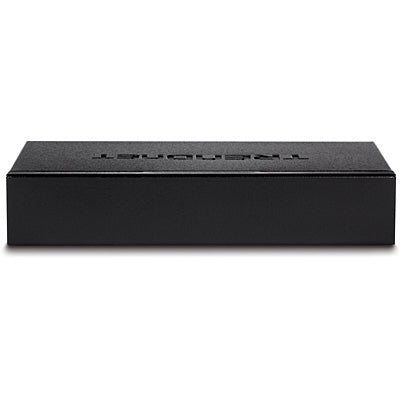

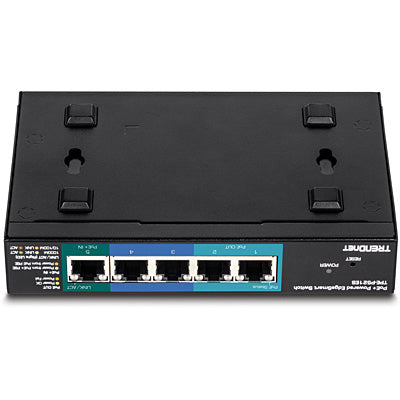

Trendnet TPE-P521ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TPE-P521ES
$99.48 CAD
TPE-P521ES (Version v1.0R) - 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through
Key Features
- 1 x Gigabit PoE+ input port
- 2 x Gigabit PoE output ports
- 2 x Gigabit ports
- 18W PoE power budget
- Easy to use web-based management interface
- Supports LACP, VLAN, QoS, STP, RTSP and IGMP Snooping
- Voice VLAN for VoIP applications
- Bandwidth control per port
- 10Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- Compact fanless design
- Wall mountable metal housing
Description
5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.Integration Flexibility
Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.
PoE+ Powered
No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras.
EdgeSmart Management
Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| Certification | CE, FCC |
| Performance | |
| Firmware upgradeable | Yes |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 730455 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power protection features | Over current, Short circuit |
| Power consumption (max) | 20.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 18 W |
| Power protection features | Over current, Short circuit |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Virtual LAN features | |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 3.82" (97 mm) |
| Height | 1.13" (28.6 mm) |
| Weight | 13.1 oz (370 g) |
| Certificates | |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
