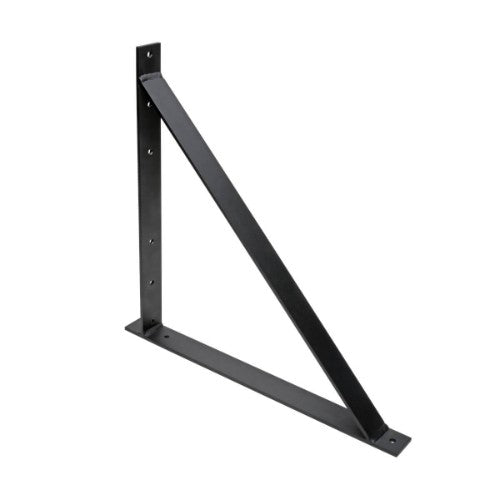

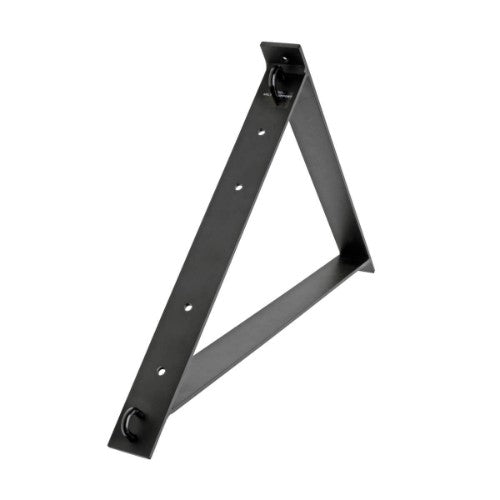

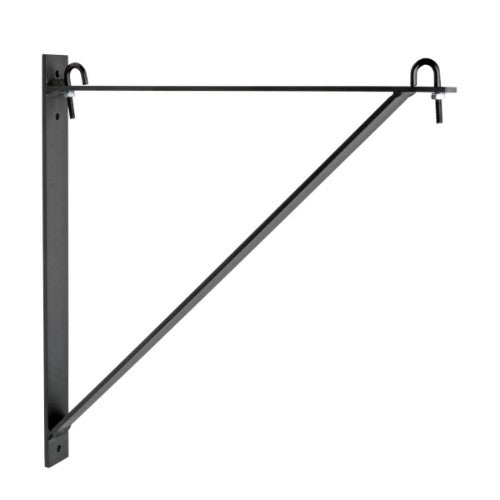

Tripp Lite SRLTRISUPPORT rack accessory Mounting bracket
120.28 CAD
Skip to product information
Out of stock
Tripp Lite SRLTRISUPPORT rack accessory Mounting bracket
Part number
SRLTRISUPPORT
120.28 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.06 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- For safely routing runway from the wall to outside an enclosure or open frame rack
- 0.25 x 2 in. aluminum wall bracket supports runway and cabling up to 100 lb. (45.4 kg)
- Compatible with 12 in. and 18 in. straight and 90-degree-bend ladder sections
- Works with all SmartRack® ladder system accessories and runways

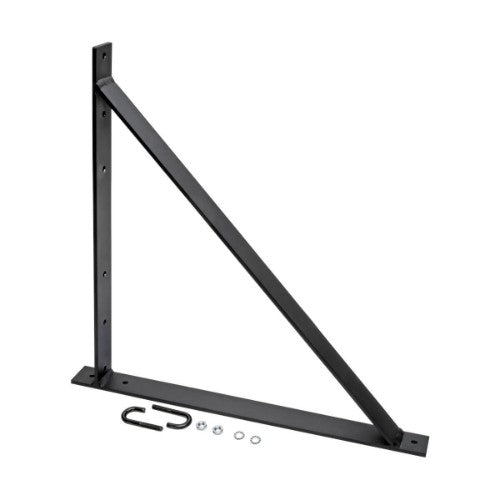

- Includes all necessary mounting and installation hardware for immediate use
Cable Ladder Triangular Support Bracket Secures Your Data Center’s Runway System to a Wall
This innovative SmartRack cable runway wall support kit creates a secure connection between your server rack and the wall of your server room or data center. Mounting and installation hardware is included, except for appropriate fasteners to secure the durable aluminum wall bracket. The mounting surface must be able to support the combined equipment load safely. Be sure to use suitable mounting means when installing to cinder block, concrete, drywall or wooden studs. The SRLTRISUPPORT is constructed of 0.25 x 2 inches (6 x 51 millimeters) aluminum and supports up to 100 pounds (45 kilograms). It is designed for SRCABLELADDER, SRCABLELADDER18, SRL90BEND12, SRL90BEND18 and other compatible straight and 90-degree ladder sections.
This innovative SmartRack cable runway wall support kit creates a secure connection between your server rack and the wall of your server room or data center. Mounting and installation hardware is included, except for appropriate fasteners to secure the durable aluminum wall bracket. The mounting surface must be able to support the combined equipment load safely. Be sure to use suitable mounting means when installing to cinder block, concrete, drywall or wooden studs. The SRLTRISUPPORT is constructed of 0.25 x 2 inches (6 x 51 millimeters) aluminum and supports up to 100 pounds (45 kilograms). It is designed for SRCABLELADDER, SRCABLELADDER18, SRL90BEND12, SRL90BEND18 and other compatible straight and 90-degree ladder sections.
| Features | |
|---|---|
| Type | Mounting bracket |
| Maximum weight capacity | 99.2 lbs (45 kg) |
| Product colour | Black |
| Compatibility | SRCABLELADDER, SRCABLELADDER18, SRL90BEND12, |
| Harmonized System (HS) code | 7326.90.8688 |
| Housing material | Aluminum |
| Country of origin | China |
| Weight & dimensions | |
| Package width | 23.6" (600 mm) |
| Package depth | 3.35" (85 mm) |
| Package height | 23.3" (591.3 mm) |
| Package weight | 4.54 lbs (2.06 kg) |
| Width | 23.6" (600 mm) |
| Weight | 3.11 lbs (1.41 kg) |
| Height | 23.3" (591.3 mm) |
| Depth | 3.35" (85 mm) |
| Packaging data | |
| Package width | 23.6" (600 mm) |
| Package depth | 3.35" (85 mm) |
| Package height | 23.3" (591.3 mm) |
| Package weight | 4.54 lbs (2.06 kg) |
| Packaging content | |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 2 |
| Quick installation guide | Yes |
| Washers included | Yes |
| Number of washers included | 2 |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332214482 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 20.9" (530 mm) |
| Master (outer) case length | 24" (610.1 mm) |
| Master (outer) case height | 24.4" (620 mm) |
| Master (outer) case gross weight | 31.7 lbs (14.4 kg) |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 7326.90.8688 |
