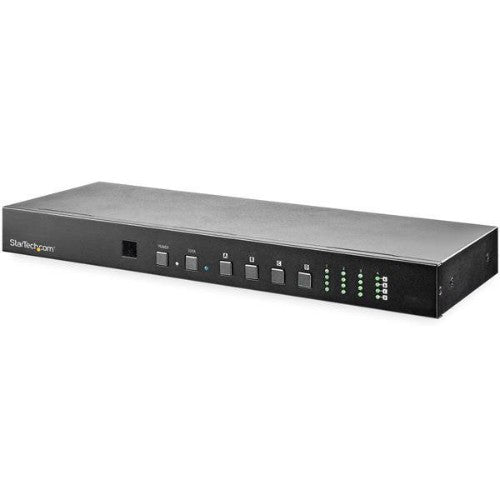

HDMI Switcher Box | Rack Mountable | Remote Ethernet & RS232 Control

This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.

True 4K at 60Hz

The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.

Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.

Optimized Functionality

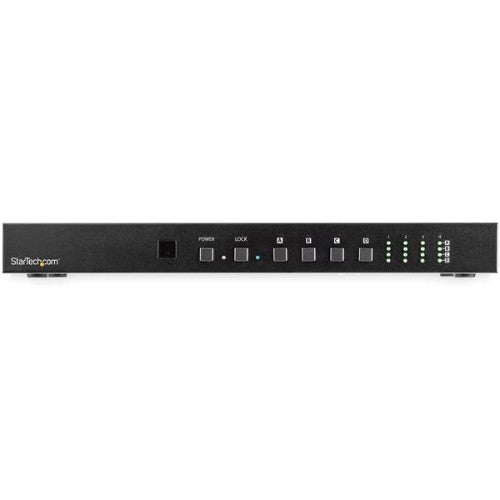

This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.

The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.

Ultimate Convenience

The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).

VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.

The StarTech.com Advantage

- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it

Features
Product type	AV matrix switcher
Bandwidth	18 Gbit/s
Supported resolutions	4096 x 2160 3840 x 2160 1920 x 1200
Maximum resolution	4096 x 2160 pixels
Audio channels	7.1
Design
Housing material	Metal
Rack mounting	Yes
Housing colour	Black
Certification	TAA, CE, FCC, REACH
LED indicators	Activity, Power
Remote control included	Yes
Display
Built-in display	No

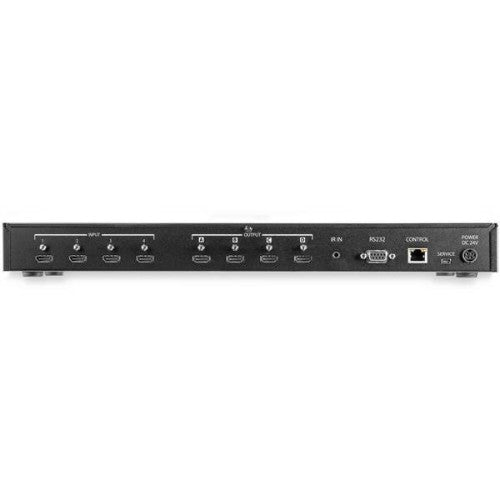

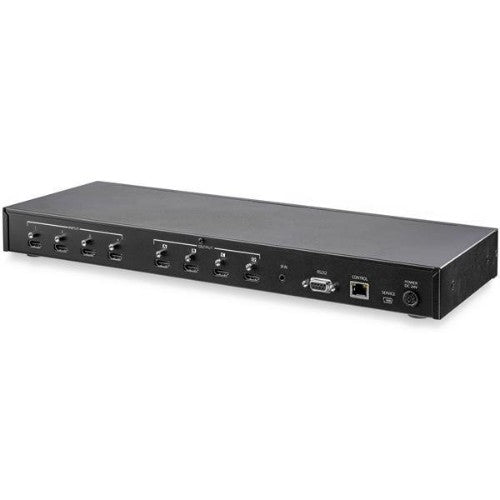

Ports & interfaces
USB ports quantity	1
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
HDMI input ports quantity	4
HDMI output ports quantity	4
USB connector type	Mini-USB B
Remote (IR) input	1
HDMI version	2.0
Power
AC input voltage	100 - 240 V
Input current	1.5 A
Output current	2700 mA
Output voltage	24 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Harmonized System (HS) code	85299097
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85299097
Weight & dimensions
Width	6.3" (160 mm)
Depth	17.2" (437 mm)
Height	1.69" (43 mm)
Weight	4.41 lbs (2 kg)
Package weight	8.82 lbs (4 kg)
Package width	11.5" (292 mm)
Package depth	20.7" (525 mm)
Package height	3.74" (95 mm)

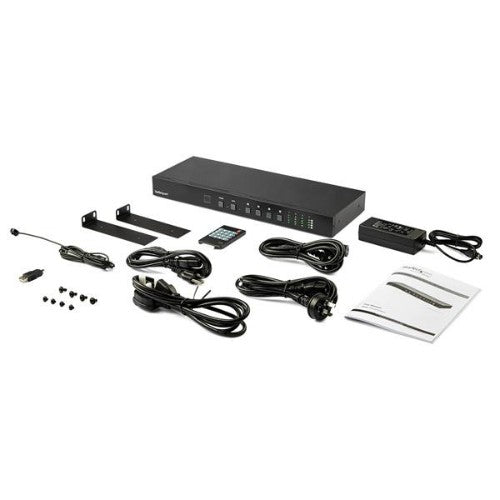

Packaging content
Manual	Yes
Mounting brackets included	Yes
IR receiver included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
