Out of stock
Maximize your high-end dual DisplayPort workstations by connecting them to the 2-Port 4K Dual View Display Port KVMP. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.
A Dual Cinema 4K Experience
Join two 4K Cinema DisplayPort monitors to your premium desktop or laptop to experience superior screen, image, and video quality. The Dual View DisplayPort KVMP delivers a 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz..
Designed for professional film and video production industries, the 2-Port KVMP supports environments requiring cinematic graphics resolution. Superior quality is also ideal for applications in motion graphic design, animation, engineering, architecture, and media design.
Convenient Switching Methods
Switch and access two DisplayPort computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.
Expand to Utilize Up to Four 4K Monitors
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). Expand your workstations to accommodate up to four Cinema 4K DisplayPort monitors.
Smart Connectivity
Additional smart connectivity features turn your workstation into a convenient, easy-to-use powerhouse. The Power on Detection ensures automatic connection to the next powered-on computer. With Multi Stream Transport (MST) support, double your desktop viewing space by daisy chaining each monitor to another monitor, accommodating up to four DisplayPort monitors*. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and compatibility with legacy USB 2.0 and 1.1 devices.
*Resolution adjusted as more monitors are daisy-chained

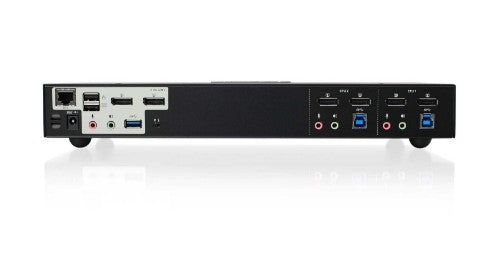

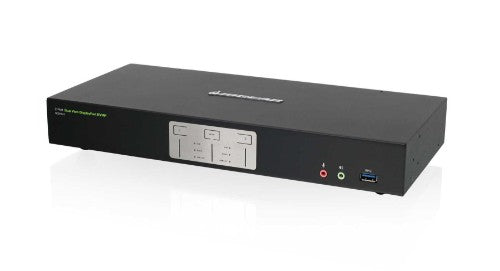

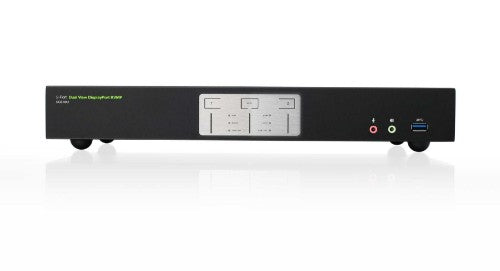

iogear GCS1942 KVM switch Black, Gray
Part number
GCS1942
$368.62 CAD
GCS1942, DisplayPort, USB A, 3.5mm, USB 3.0 B, RJ-45, DC 12V, 53.9x155.6x335 mm
Key Features
- Maximize your high-end multi-monitor workstation with superior video resolution
- Share dual True 4K Cinema DisplayPort monitors (4096 x 2160 @60Hz)
- Operate 4 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
- Add another GCS1942 to expand up to four 4K monitors
- DisplayPort 1.2 compliant, HDCP compliant
Description
Enhance High-End Multi-Monitor WorkstationMaximize your high-end dual DisplayPort workstations by connecting them to the 2-Port 4K Dual View Display Port KVMP. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.
A Dual Cinema 4K Experience
Join two 4K Cinema DisplayPort monitors to your premium desktop or laptop to experience superior screen, image, and video quality. The Dual View DisplayPort KVMP delivers a 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz..
Designed for professional film and video production industries, the 2-Port KVMP supports environments requiring cinematic graphics resolution. Superior quality is also ideal for applications in motion graphic design, animation, engineering, architecture, and media design.
Convenient Switching Methods
Switch and access two DisplayPort computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.
Expand to Utilize Up to Four 4K Monitors
Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). Expand your workstations to accommodate up to four Cinema 4K DisplayPort monitors.
Smart Connectivity
Additional smart connectivity features turn your workstation into a convenient, easy-to-use powerhouse. The Power on Detection ensures automatic connection to the next powered-on computer. With Multi Stream Transport (MST) support, double your desktop viewing space by daisy chaining each monitor to another monitor, accommodating up to four DisplayPort monitors*. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and compatibility with legacy USB 2.0 and 1.1 devices.
*Resolution adjusted as more monitors are daisy-chained
Specifications
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | USB Type-A, USB Type-B |
| Number of microphone inputs | 4 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| Headphone outputs | 4 |
| HDCP | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB 2.0 Type-B ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Hot-Plug support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,5,255 s |
| HDCP | Yes |
| Design | |
| Product colour | Black, Gray |
| Push button | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 13.2" (335 mm) |
| Depth | 6.13" (155.6 mm) |
| Height | 2.12" (53.9 mm) |
| Weight | 3.51 lbs (1.59 kg) |
| Package width | 21.5" (546.1 mm) |
| Package depth | 4.75" (120.7 mm) |
| Package height | 9.5" (241.3 mm) |
| Package weight | 7.36 lbs (3.34 kg) |
| Packaging data | |
| Package width | 21.5" (546.1 mm) |
| Package depth | 4.75" (120.7 mm) |
| Package height | 9.5" (241.3 mm) |
| Package weight | 7.36 lbs (3.34 kg) |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 22.2" (565 mm) |
| Master (outer) case length | 15.3" (387.4 mm) |
| Master (outer) case height | 10.5" (266.7 mm) |
| Master (outer) case gross weight | 22.5 lbs (10.2 kg) |
| Products per master (outer) case | 3 pc(s) |
| Other features | |
| Push button | Yes |
