The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

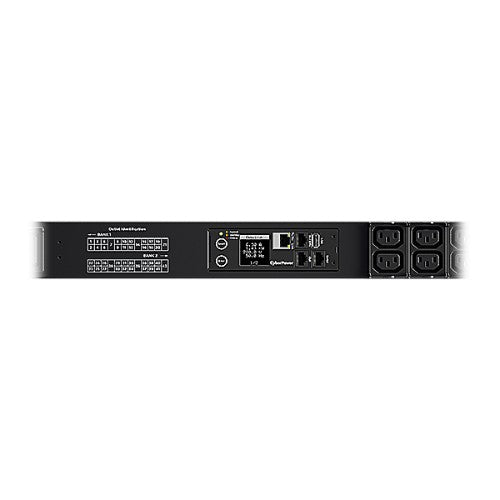

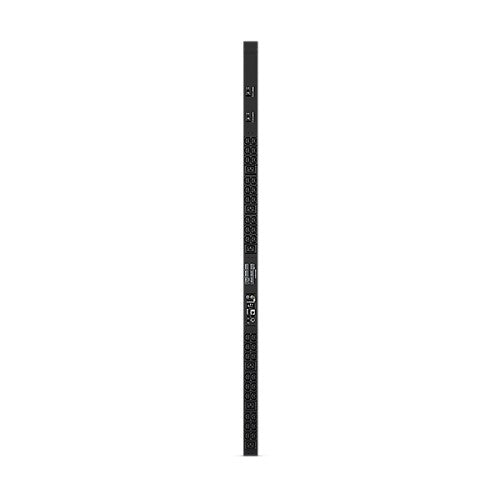

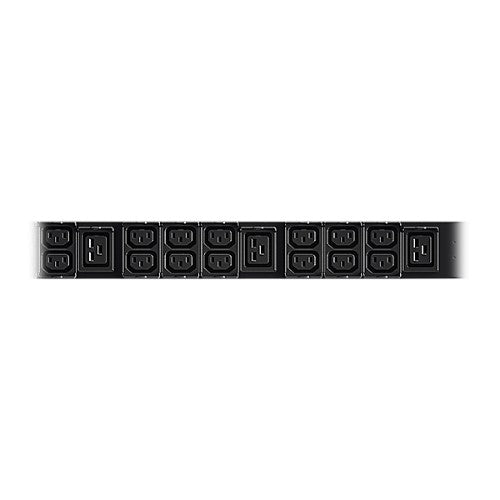

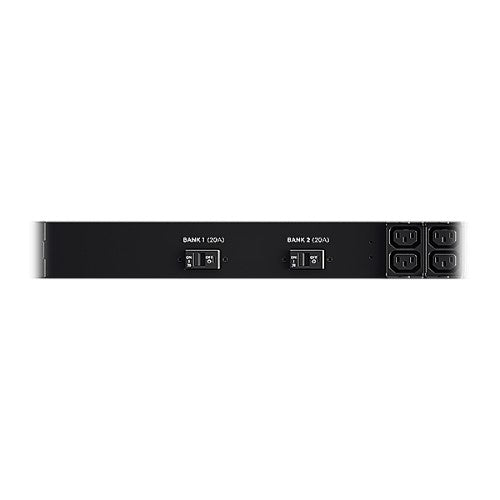

CyberPower PDU31106 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Part number
PDU31106
Regular price
$1,194.62 CAD
Sale price
$1,146.88 CAD
200-240 V, 50/60 Hz, 24 A, IEC C13x36/IEC C19x6, 56x1665x48 mm
Key Features
- Real-Time Local/Remote Monitoring
- Overload Protection
- Work under High Temperature
- ±1% Measurement Accuracy
- Ultra Low Power Consumption
- Industrial-grade Metal Housing
- Digital Real-time Load Display
- User Configurable Color LCD
- Hot-swappable LCD Design
- Rotatable LCD for Proper Display Orientation
- LED Status Indicator
- Firmware Upgrade via USB
- User-upgradeable Firmware
- PowerPanel® Management Software
- Adjustable Mounting Brackets
- Cord Retention Tray
- IEC Receptacle Locking
Description
CyberPower PDU31106 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports real-time remote monitoring of its connected equipment, making power management much more convenient for users.The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
Specifications
| Design | |
|---|---|
| PDU types | Monitored |
| Mounting | Vertical |
| Type | Single-phase |
| Product colour | Black |
| Certification | FCC Class A, UL60950 |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Link, Status |
| Certification | FCC Class A, UL60950 |
| Reset button | Yes |
| Ergonomics | |
| LED indicators | Link, Status |
| Power | |
| Nominal input voltage | 200 - 240 V |
| Maximum current | 24 A |
| Nominal output voltage | 200 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Weight & dimensions | |
| Weight | 12.3 lbs (5.6 kg) |
| Width | 2.2" (56 mm) |
| Depth | 1.89" (48 mm) |
| Height | 65.6" (1665 mm) |
| Package width | 7.28" (185 mm) |
| Package depth | 4.53" (115 mm) |
| Package height | 74.6" (1895 mm) |
| Package weight | 16.5 lbs (7.5 kg) |
| Packaging data | |
| Package width | 7.28" (185 mm) |
| Package depth | 4.53" (115 mm) |
| Package height | 74.6" (1895 mm) |
| Package weight | 16.5 lbs (7.5 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
