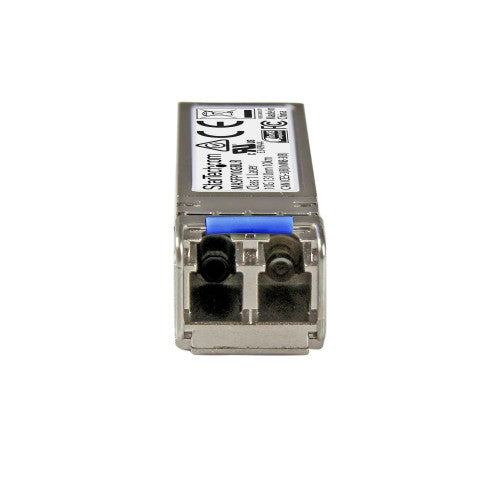

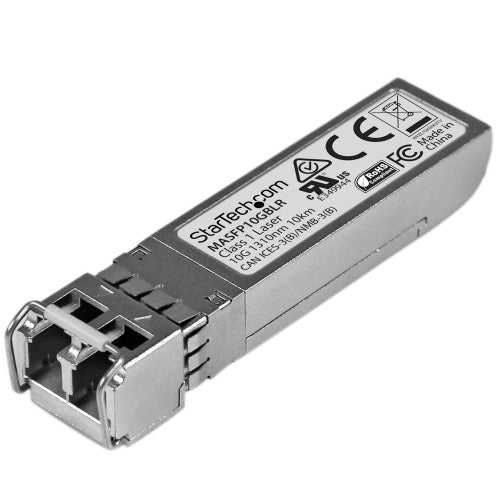

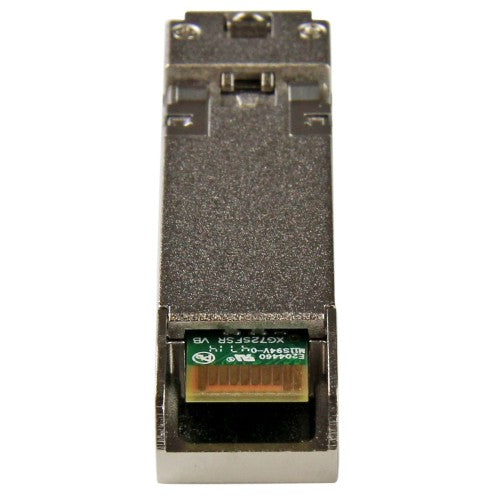

StarTech.com MASFP10GBLR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
369.40 CAD
Skip to product information
Out of stock
StarTech.com MASFP10GBLR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Part number
MASFP10GBLR
369.40 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.048 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 100% CISCO MERAKI MA-SFP-10GB-LR COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MS425 and others
- TECHNICAL SPECS: 10GBASE-LR / 10 Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Performance | |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminum |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 393700.8" (10000 m) |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminum |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| Power | |
| Power consumption (typical) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 0.547" (13.9 mm) |
| Depth | 2.3" (58.4 mm) |
| Height | 0.496" (12.6 mm) |
| Weight | 0.776 oz (22 g) |
| Package width | 3.54" (90 mm) |
| Package depth | 4.72" (120 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 1.87 oz (53 g) |
| Packaging data | |
| Package width | 3.54" (90 mm) |
| Package depth | 4.72" (120 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 1.87 oz (53 g) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 9.84" (250 mm) |
| Master (outer) case length | 11.8" (300 mm) |
| Master (outer) case height | 7.87" (200 mm) |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Quantity per pack | 1 pc(s) |
