What This Product Does

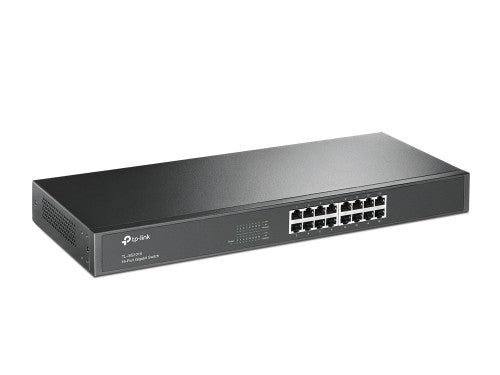

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.

TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Policy-based routing	Yes
IGMP snooping	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Jumbo frames	10000
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	23.8 Mpps
Security
Security algorithms	802.1x RADIUS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP client, DHCP server, DHCP snooping
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Activity, Link, Power
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990

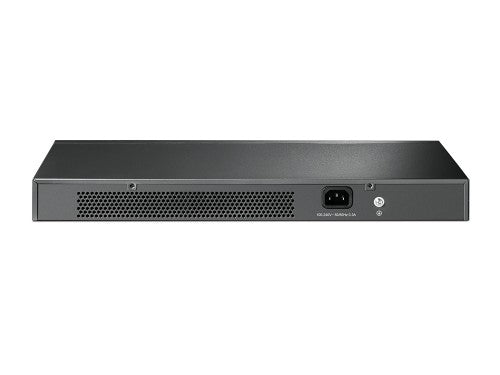

Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9.26 W
Power consumption (max)	10.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	35.6 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.3" (440 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
Cables included	AC
Certificates
Certification	FCC, CE, RoHS
Packaging data
Rack mount kit	Yes
Cables included	AC
Other features
Ethernet LAN data rates	10,100,480,800,1000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
