KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

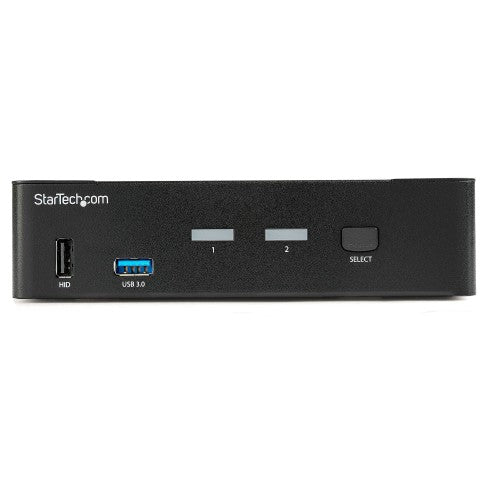

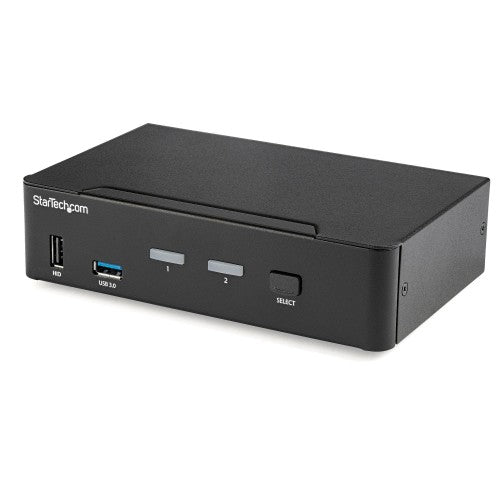

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

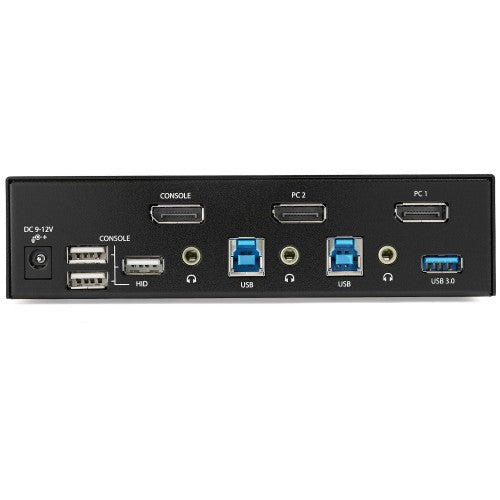

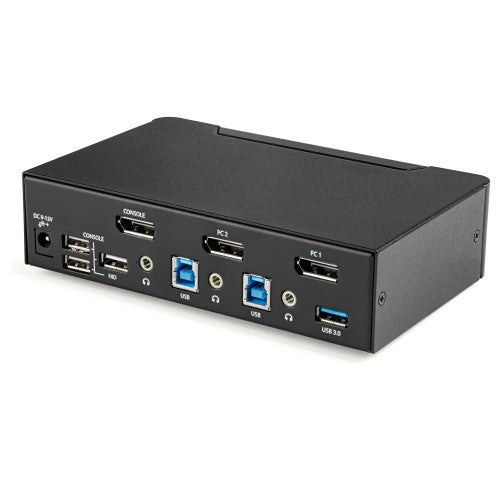

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
USB connector type	USB Type-A, USB Type-B
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
DisplayPorts quantity	3
DisplayPort version	1.2
Headphone outputs	3
DC-in jack	Yes
Console USB ports quantity	6
Console ports	3.5mm headphone, DisplayPort, USB A
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
HDCP	Yes
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Number of users	1 user(s)
HDCP	Yes
Daisy chain	No
Audio channels	2.0
Design
Product colour	Black
Mean time between failures (MTBF)	60000 h
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, TAA, REACH
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Output voltage	12 V
Input current	0.6 A
Output current	1.5 A
Power consumption (typical)	18 W
Power plug type	Type M
External power adapter	Yes
Compatible power plug types	AU, EU, JP, UK, US
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions

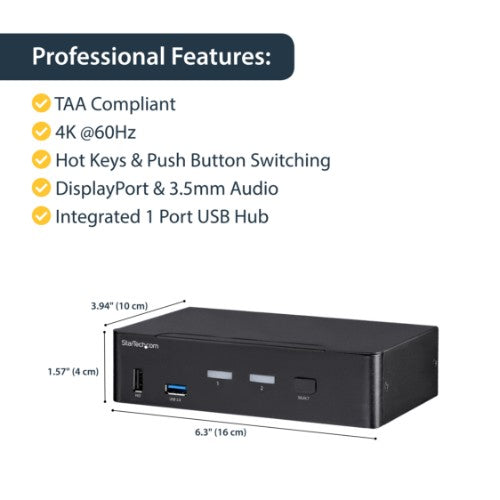

Width	6.3" (160 mm)
Depth	3.94" (100 mm)
Height	1.57" (40 mm)
Weight	2.43 lbs (1.1 kg)
Package width	7.44" (189 mm)
Package depth	9.37" (238 mm)
Package height	3.58" (91 mm)
Packaging data
Package width	7.44" (189 mm)
Package depth	9.37" (238 mm)
Package height	3.58" (91 mm)

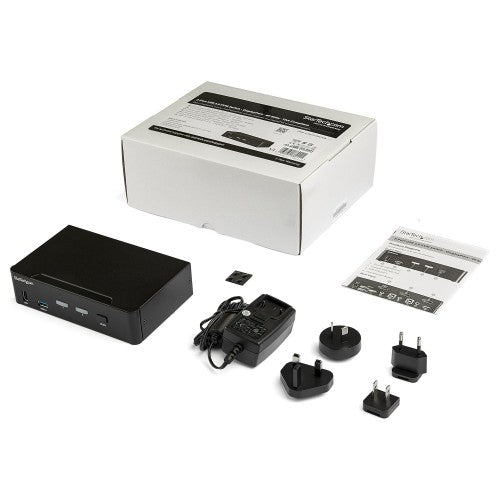

Packaging content
Rubber feet	Yes
Quick installation guide	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, TAA, REACH
Other features
IP control	No
Hot keys	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	12.5" (318 mm)
Master (outer) case length	15.3" (389 mm)
Master (outer) case height	11.2" (285 mm)
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
