Ubiquiti UFiber Nano G gateway/controller 1000 Mbit/s
49.63 CAD
Skip to product information
Out of stock
Ubiquiti UFiber Nano G gateway/controller 1000 Mbit/s
Part number
UF-NANO
49.63 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.11 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Status Display

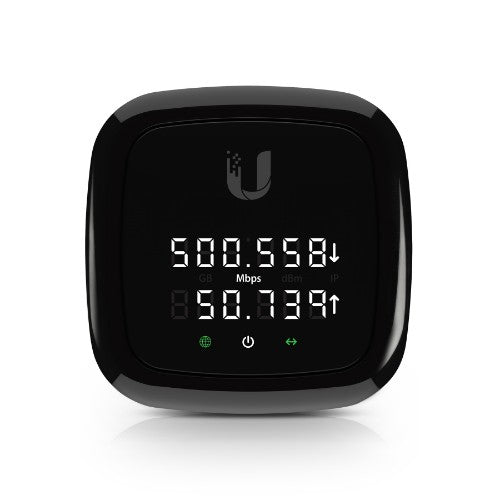

The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.
The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.
| Design | |
|---|---|
| LED indicators | Yes |
| Certification | CE, FCC, IC |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 240 MHz |
| Number of processors installed | 1 |
| Internal memory | 128 MB |
| Certification | CE, FCC, IC |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Data transfer rate | 2.488 Gbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 7 W |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 24 V |
| Input current | 0.3 A |
| Weight & dimensions | |
| Weight | 3.88 oz (110 g) |
| Dimensions (WxDxH) | 3.03 x 3.03 x 1.1" (77 x 77 x 28 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 240 MHz |
| Number of processors installed | 1 |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Memory | |
| Internal memory | 128 MB |
| Certificates | |
| Certification | CE, FCC, IC |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 240 MHz |
| Number of processors installed | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
