StarTech.com ST124HD202 video splitter HDMI 4x HDMI
97.57 CAD
Skip to product information
In stock
StarTech.com ST124HD202 video splitter HDMI 4x HDMI
Part number
ST124HD202
97.57 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.506 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
- EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
- AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
- LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays
- EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible
1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

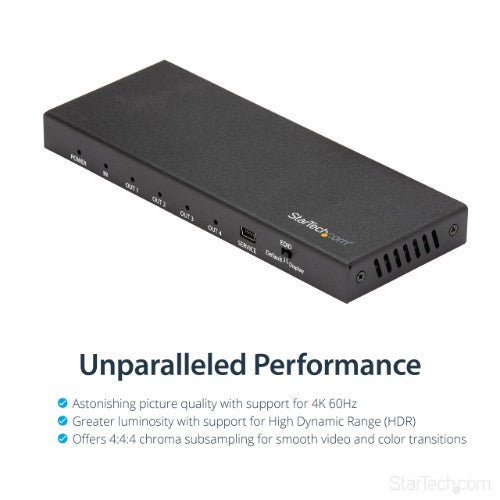

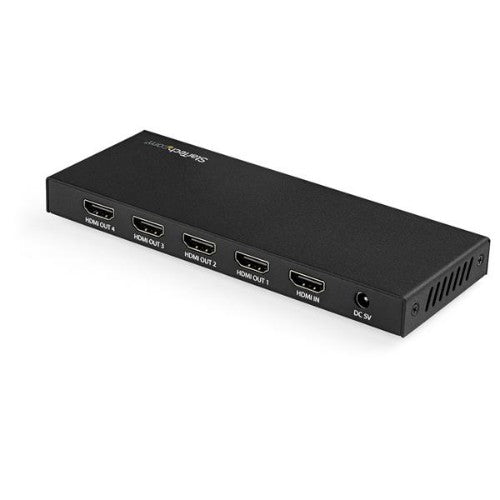

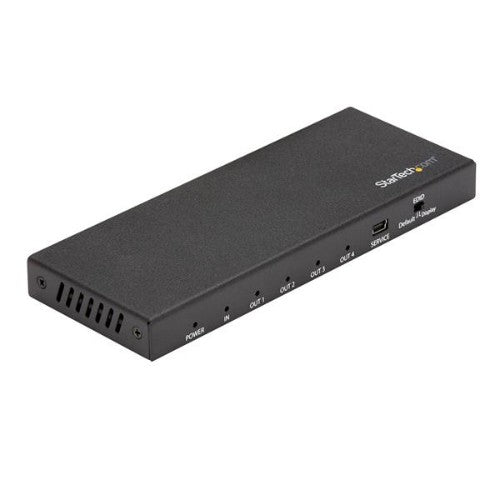

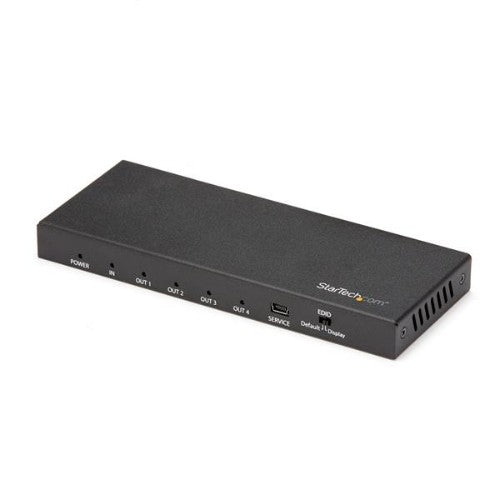

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage

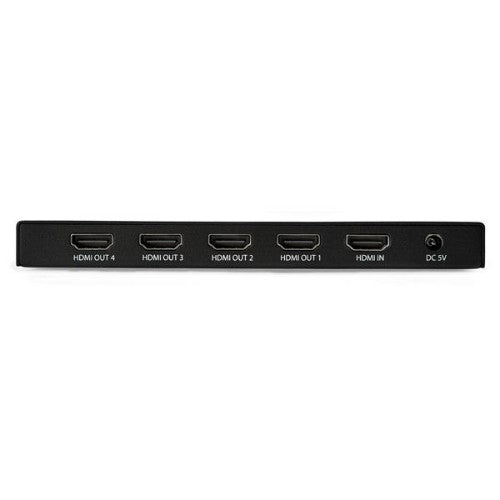

| Ports & interfaces | |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| Features | |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Power LED | Yes |
| Plug and Play | Yes |
| Maximum refresh rate | 60 Hz |

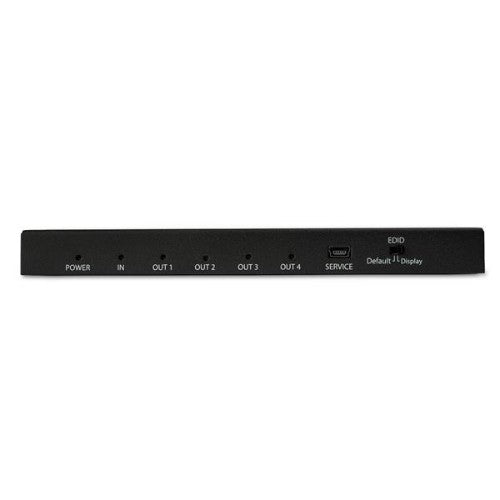

| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| HD type | 4K Ultra HD |
| Power | |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 0.2 A |
| Power consumption (typical) | 5 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Weight | 17.8 oz (506 g) |
| Width | 2.52" (64 mm) |
| Depth | 6.5" (165 mm) |
| Height | 2.56" (65 mm) |
| Package depth | 8.35" (212 mm) |
| Package width | 5.83" (148 mm) |
| Package height | 2.17" (55 mm) |
| Packaging data | |
| Package depth | 8.35" (212 mm) |
| Package width | 5.83" (148 mm) |
| Package height | 2.17" (55 mm) |

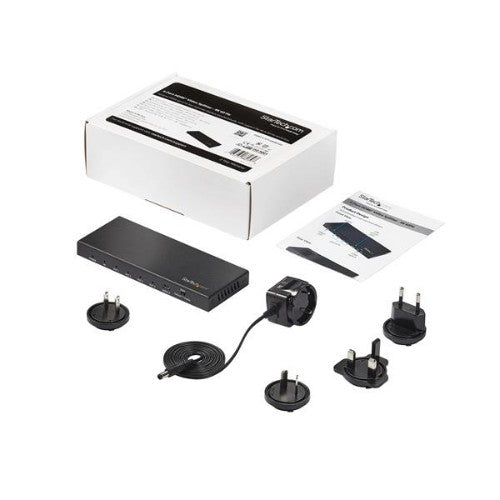

| Packaging content | |
| Included power plug types | AU, EU, NA, UK |
| User guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Video | |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Technical details | |
| Supported audio channels | 7.1 |
| Video out | 4x HDMI |
| Plug and Play | Yes |
| Maximum cable length | 196.9" (5 m) |
| HDMI version | 2.0 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
