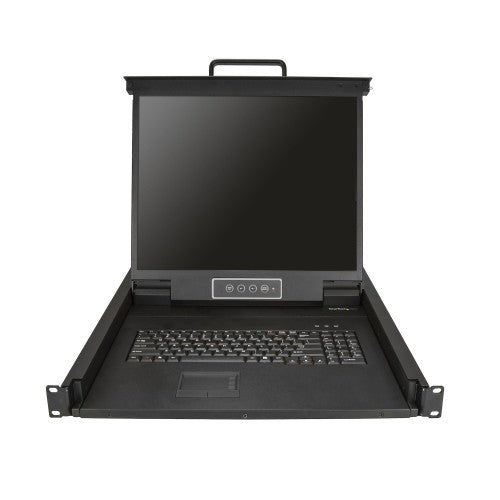

Control your server or KVM switch from a centralized rack console

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

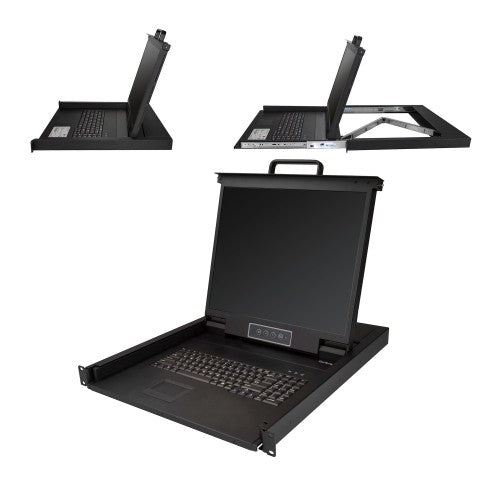

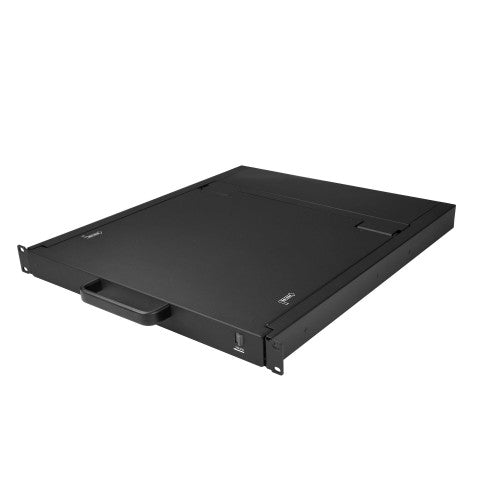

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Display
Display number of colours	16.78 million colors
Display diagonal	19"
Viewing angle, vertical	170°
Viewing angle, horizontal	176°
Pixel pitch	0.0104 x 0.0104" (0.264 x 0.264 mm)
On Screen Display (OSD)	Yes
Display type	LCD
Display resolution	1280 x 1024 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Aspect ratio	4:3
Technical details
LED indicators	Yes
Rack capacity	1U
Operating relative humidity (H-H)	10 - 80%
Mean time between failures (MTBF)	50000 h
Material	Steel
Key lock	No
Daisy chain	Yes
Product colour	Black
Cables included	AC, KVM
IP control	No
Audio support	No
Compliance certificates	RoHS
Ports & interfaces
Video port type	VGA
Keyboard
Hot keys	Yes
Built-in touchpad	Yes
Power
Power consumption (typical)	17 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	CE, FCC
Weight & dimensions
Mounting depth (min)	19.7" (50 cm)
Mounting depth (max)	30.7" (78 cm)
Weight	26.9 lbs (12.2 kg)
Width	19" (483 mm)
Height	16.9" (430 mm)
Depth	21" (533 mm)
Packaging data
Package width	24.2" (615 mm)
Package depth	30.1" (765 mm)
Package height	7.48" (190 mm)
Package weight	35.3 lbs (16 kg)

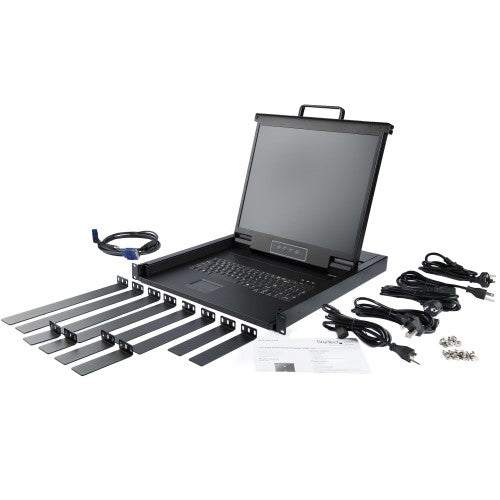

Packaging content
Screws included	Yes
Mounting brackets included	Yes
Quick installation guide	Yes
Cables included	AC, KVM
Included power plug types	ANZ, EU, JP, NA, UK
Logistics data
Master (outer) case width	24.2" (615 mm)
Master (outer) case length	30.1" (765 mm)
Master (outer) case height	7.48" (190 mm)
Products per master (outer) case	1 pc(s)
