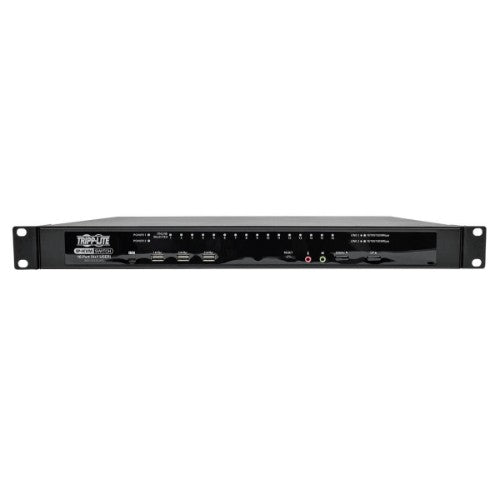

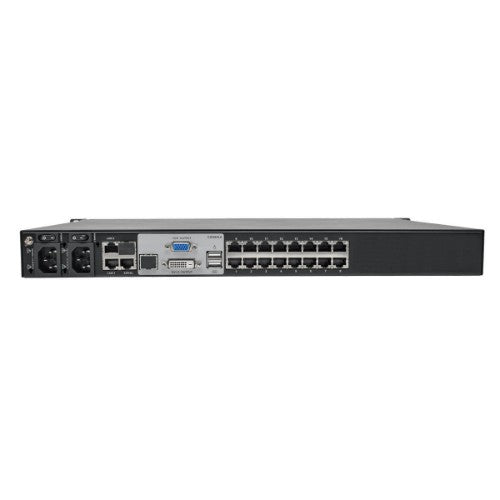

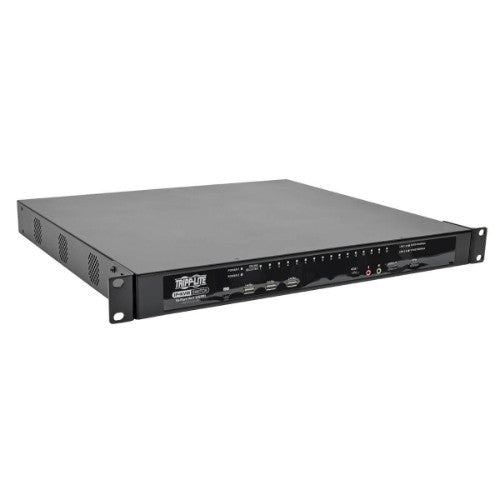

This 16-port NetDirector® Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to five (one Local and four Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1600 x 1200 at 60 Hz with 32-bit color depth for the local console and up to 1600 x 1200 at 60 Hz with 24-bit color depth for remote sessions up to 164 feet (50 meters). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze. View multiple computers at the same time using panel array mode, automatically sync USB mice and access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.

Ports & interfaces
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Ethernet LAN (RJ-45) ports	16
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN (RJ-45) ports	16
Design
Product colour	Black
Country of origin	Taiwan
LED indicators	Yes
Certification	UL/cUL, FCC, CE, TAA, RoHS
Features
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	17.1" (433.3 mm)
Depth	16.3" (413.3 mm)
Height	1.72" (43.7 mm)
Weight	12 lbs (5.45 kg)
Package width	20.1" (510.5 mm)
Package depth	22.4" (569 mm)
Package height	5.4" (137.2 mm)
Package weight	16.6 lbs (7.53 kg)
Packaging data
Package width	20.1" (510.5 mm)
Package depth	22.4" (569 mm)
Package height	5.4" (137.2 mm)
Package weight	16.6 lbs (7.53 kg)

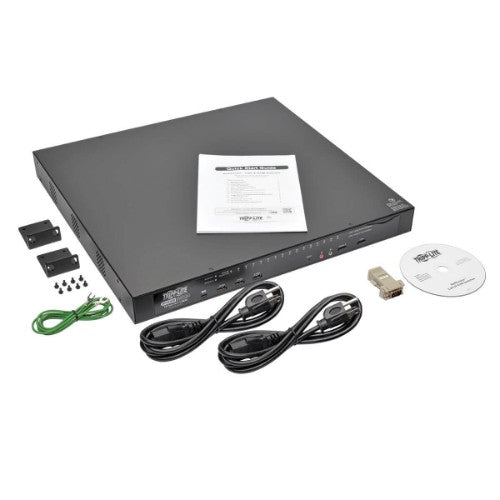

Packaging content
Cables included	PS/2, USB
Certificates
Certification	UL/cUL, FCC, CE, TAA, RoHS
Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8471.80.1000
Other features
Data link protocols	TCP/IP, HTTP, DNS, DHCP, UDP, ARP
Connectivity technology	Wired
Ports quantity	16
Weight (imperial)	17 lbs
