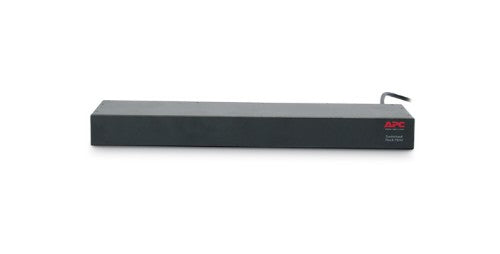

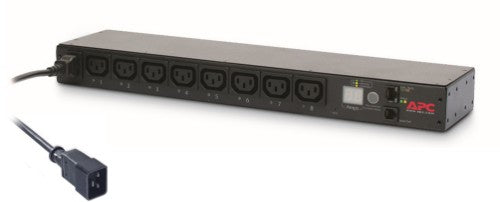

APC AP7921B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black
Part number
AP7921B
$1,143.55 CAD
NetShelter Switched Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, 8 C13 outlets, C20cord
Description
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.Specifications
| Design | |
|---|---|
| PDU types | Metered, Switched |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Rack capacity | 0U/1U |
| Ports & interfaces | |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C20 |
| Features | |
| Cable length | 98.4" (2.5 m) |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Ergonomics | |
| Cable length | 98.4" (2.5 m) |
| Power | |
| Nominal input voltage | 200-230 V |
| Maximum power | 3680 W |
| Maximum current | 16 A |
| Nominal output voltage | 208-230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 39.4 - 590551.2" (1 - 15000 m) |
| Weight & dimensions | |
| Weight | 5 lbs (2.27 kg) |
| Width | 17.5" (445 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.73" (44 mm) |
| Package width | 18.5" (470 mm) |
| Package depth | 13.5" (343 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 7.61 lbs (3.45 kg) |
| Packaging data | |
| Package width | 18.5" (470 mm) |
| Package depth | 13.5" (343 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 7.61 lbs (3.45 kg) |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 915.89 |
| Compliance certificates | RoHS |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 915.89 |
