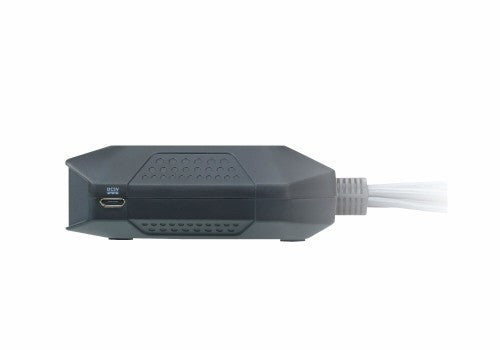

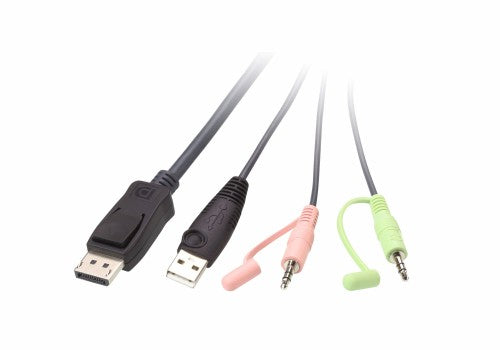

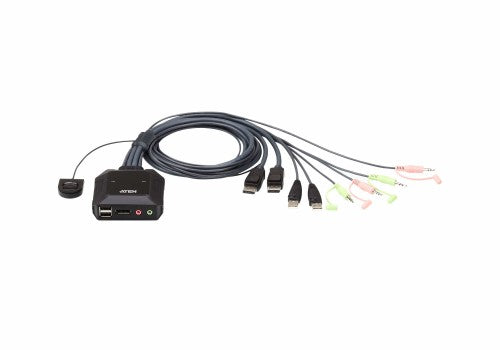

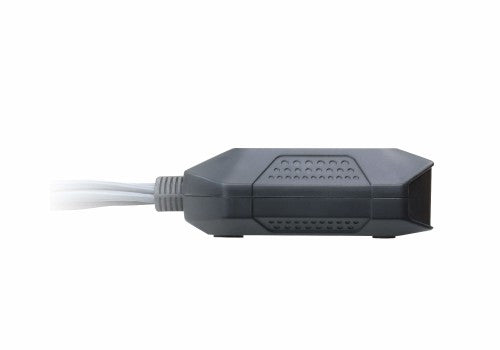

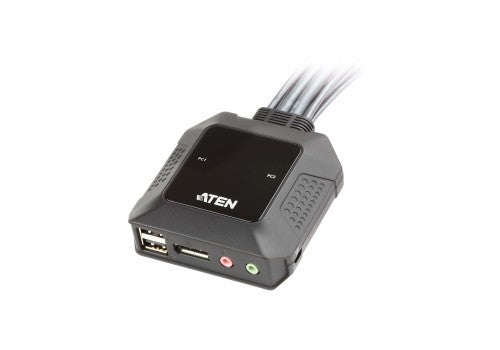

ATEN CS22DP KVM switch Black
97.84 CAD
Skip to product information
Out of stock
ATEN CS22DP KVM switch Black
Part number
CS22DP
97.84 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.35 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30 Hz
- Multiplatform support – Windows, Mac, and Linux
- Bus-powered design
Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.
Superior AV Performance in Vivid 4K
The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform Integration
The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.

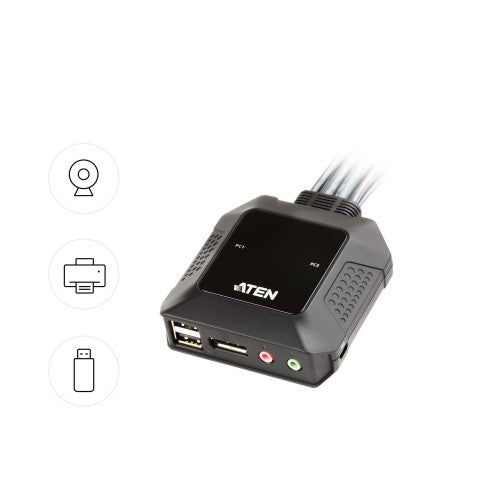

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Superior AV Performance in Vivid 4K
The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform Integration
The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| USB connector type | Micro-USB B, USB Type-A |
| Number of microphone inputs | 1 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.1 |
| Headphone outputs | 1 |
| Console USB ports quantity | 2 |

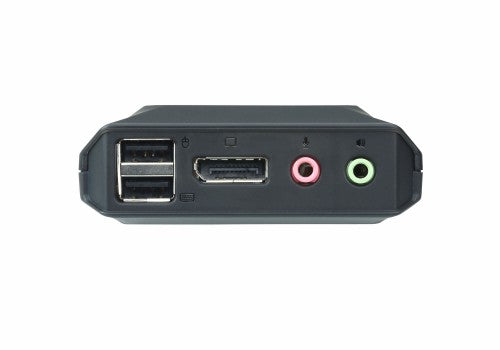

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB 2.0 Type-A hub ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| Cable length | 47.2" (1.2 m) |
| HDCP | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Hot-Plug support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Design | |
| Product colour | Black |
| Cable length | 47.2" (1.2 m) |
| Rack mounting | No |
| Wired remote switch | Yes |
| Remote switch cable length | 70.9" (1.8 m) |
| LED indicators | Yes |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 1.38 W |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 3.31" (84.2 mm) |
| Depth | 3.28" (83.4 mm) |
| Height | 1.2" (30.4 mm) |
| Weight | 12.3 oz (350 g) |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
