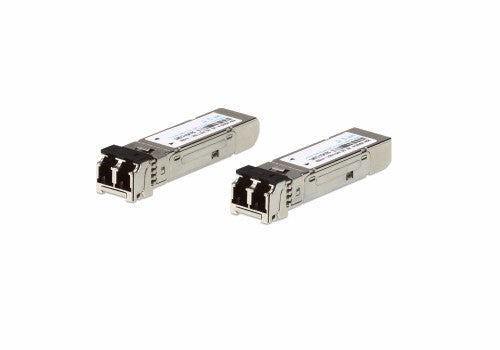

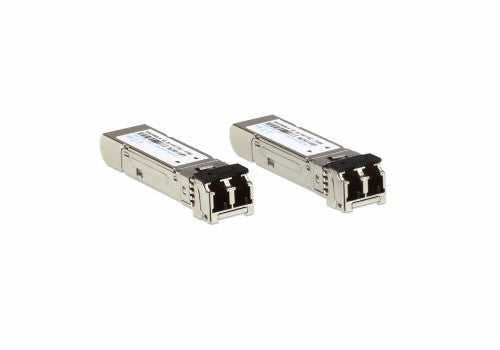

ATEN 2A-136G network transceiver module Fiber optic 1250 Mbit/s SFP 1300 nm
Part number
2A-136G
150.63 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.02 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Extend your network connectivity up to 550 meters
- Differential Inputs and Outputs
- Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
- Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
- Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
- Operation Temperature from 0° C to 70° C
- RoHS Compliant
The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Maximum transfer distance | 21653.5" (550 m) |
| Wavelength | 1300 nm |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Product colour | Blue, Metallic |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Blue, Metallic |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Weight & dimensions | |
| Width | 5.75" (146 mm) |
| Depth | 2.2" (55.9 mm) |
| Height | 0.512" (13 mm) |
| Weight | 0.705 oz (20 g) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
